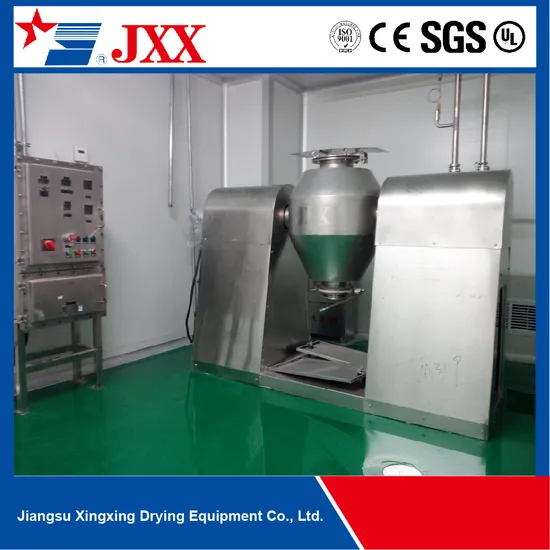

Double Cone Revolving Vacuum Dryer with GMP & ISO Certificate

Product Description

DESCRIPTION
SZG double-tapered rotary vacuum dryer is a new generation drying apparatus our company developed on the basis of technology of domestic similar products. It uses belt-chain two elastic coupling manner thus it runs smoothly. Specially designed technology fully reflects two good concentric shafts. Heating medium and vacuum system use reliable mechanical seal or US-technology rotary joint, on which basis we have developed SZG-A, with stepless speed regulating and constant temperature control.
as a professional drying equipment factory, we have everything you need, from high temperature thermal oil as heating medium-temperature to medium steam and low-temperature hot water. When drying adhesive materials, we will specially design " shoveling plate" for you or set balls in the tank.
WORKING PRINCIPLE
1) Thermal energy source (such as hot water, low pressure steam or heat-conducting oil) is pumped into sealed interlayer, and the heat is passed to dried materials through inner shell;
2) under driving of power, the tank rotates slowly, constantly mixing material, so as to achieve strengthened drying;
3) When the materials are in vacuum, vapor pressure drops, making moisture on the material surface saturate and evaporate, and then discharged by vacuum pump and recovered timely. Internal moisture proceeds three ongoing processes of continuously penetrating to the surface, evaporating and being discharge. Materials can reach the purpose of being dried in a short period.
FEATURES
1) Automatic constant temperature control is used when the oil is heating. Biochemical products and raw materials can be dried, in a temperature between 20-160ºC.
2) High thermal efficiency, more than 2 times improvement than average oven.
3) Indirect heating so that the material will not be contaminated. In line with " GMP" requirements. Simple equipment maintenance. Easy to clean.
4) Using recommended resettlement process demonstration solvent to recover resettlement.
APPLICABLE MATERILAS
Concentration, mix and drying of powder, granular materials and fibers of chemical, pharmaceutical and food industries, or materials requiring low-temperature drying(such as biological products). More suitable for drying materials which are easily oxidized, volatile, heat-sensitive, strong irritant, toxic or not permitted to destroy its crystals.
Technical Parameter

Model name	100	350	500	750	1000	1500	2000	3500	4500	5000
Volume inside the tank(L)	100	350	500	750	1000	1500	2000	3500	4500	5000
Volume to fill Raw material(L)	≤50	≤175	≤250	≤375	≤500	≤750	≤1000	≤1750	≤2250	≤2500
Heating area (m2)	1.16	2	2.63	3.5	4.61	5.58	7.5	11.2	13.1	14.1
Revolution ( rpm)	4 - 6
Power of motor (kw)	0.75	1.1	1.5	2	3	3	4	5.5	7.5	11
Occupiedarea, L×W(mm)	2160 ×800	2260 ×800	2350 ×800	2560 ×1000	2860 ×1300	3060 ×1300	3260 ×1400	3760 ×1800	3960 ×2000	4400 ×2500
Rotating height (mm)	1750	2100	2250	2490	2800	2940	2990	3490	4100	4200
Design pressure Inside the tank (MPa)	-0.1-0.15
Design pressure of jacket (MPa)	≤0.3
Working temp- Erature(oC)	in the tank≤85 jacket≤140
When use con- Densator,	2X-15A	2X-15A	2X-30A	2X-30A	2X-70A	JZJX300-8	JZJX300-4	JZJX600-8	JZJX600-4	JZJX300-4
Model and power of vacuum pump	2KW	2KW	3KW	3KW	505KW	7KW	9.5KW	11KW	20.5KW	22KW
When don,t use Condensator,	SK-0.4	SK-0.8	SK-0.8	SK-2.7B	SK-2.7B	SK-3	SK-6	SK-6	SK-9	SK-10
Model and power of vacuum pump	1.5KW	2.2KW	2.2KW	4KW	4KW	5.5KW	11KW	11KW	15KW	18.5KW
Weight(kg)	800	1100	1200	1500	2800	3300	3600	6400	7500	8600

Company Show
Company introduction: Jiangsu Xingxing Drying Equipment Co., Ltd.
Jiangsu Xingxing Drying Equipment Co.,Ltd has established in 1998 and it covers an area of 15000 square meters, possesses fixed asset of USD 7 million. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.
CERTIFICATE
Package:wooden case
Service:
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
We look forward to cooperating with partners from all over the world to build win-win cooperation relationship in long term. Welcome for your visiting.
Previous Exhibition
FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.
2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.
3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.
4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
