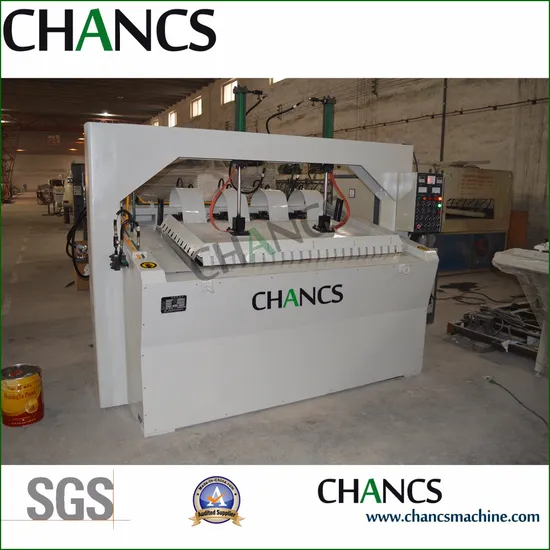

Hf Mini Hot Press Machine for Door Pocket Sealing

Hf Mini Hot Press Machine for Door Pocket Sealing

US$11,800.00-12,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
HFPB-1206T-CH
Processing Technics
Hot Press
Structure
Frame Type
Pressing Shape
Flat Press
Platen Surface Pressure
High Pressure
Pressing Layer
Single Layer
Work Mode
Continuous
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Certification
CE
After-sales Service
Free Service on Internet
Condiation
Brand New
Working Thickness
Below 40mm
Power Supply
380V, 50Hz, or Customized
Heating Method
High Frequency Dielectric Heating
Pressure Type
Hydraulic Pressure (3 Directions)
Gurantee
One Year
Shipment
20 Feet Container
Transport Package
PE Film
Specification
1200x600mm
Trademark
CHANCSMAC
Origin
China
HS Code
8514400090
Production Capacity
20 Sets/ Month

Product Description


HF Mini Hot Press for Cabinet Door Assembly

1. Introduction:
High frequency mini hot press is short of HF mini hot press. It is multi-functional machine. Can be used to assemble the solid wood door (with or without glass), window, cabinet door etc. With three direction pressure design, it can also make edge glued panels, door pocket sealing and batten sealing projects. Machine applied high frequency generator. High freuqneyc is selective heating method, which only heats glue. The whole frame or panel will not be heated. In this way, production time and energy can be highly saved.1-2 mins can finish one cycle. Wish skillful operator, one machine can finish more than 100 pieces solid wood doors per day (8 working hours). HF door assembly machine has slat working table design, which is humanistic for workers loading and upload doors. 3D hydraulic pressure can give uniform pressure on the door. Customer can adjust the pressure according to different thickness doors. Once produce small doors, hydraulic valve can be switched off accordingly.
2. Features:
1). High frequency internal heating, only heat the glue line, efficiently and energy saving.
2). 1-2 mins can finish one solid wood door.
3). Machine can protect the door surface from scratching.
4). Can assemble the frame via 3D pressure.
5). Inclined working table is more humanized and convenient for material loading.
6). International famous brand components and safety protection assure machine good and safe performance.
3.Parameter:
High frequency Mini Hot Press
Model HFMP-1206-CH HFMP-1608-CH
Working table 1200x600mm 1600x800mm
Working thickness Below 40mm Below 40mm
Control type PLC control automatically
Power supply 3 phase 380V, 50Hz or customized
Output power 15KW 15KW
Frequency 6.78MHz 6.78MHz
Top Pressure 5T 15T
Side pressure 2.5T 6T
Door lifting pressure 2.5T 4T
Commutate mode Three phase full wave silicon commutate
Cooling mode Forced Air Cooled Forced Air Cooled
Protection Photoelectric protection for operator, over current protection, air pressure protection, over temperature protection, door switch
Delivery time 40 working days 35 working days
Components Control components are Omron, Schneider, Moeller etc
Total weight 2500kg 3500kgs
Overal size
(L*W*H mm)
Main press: 2000*1450*2200
Hydraulic station: 1000*950*1200 HF generator: 1100x 900x 1900mm
Main press: 2400*1650*2300
Hydraulic station: 1000*950*1200
HF generator: 1100x 900x 1900mm
Function 1). Solid wood frame
2). Batten sealing.
3). Door pocket sealing.
4). Solid wood door assembling.
5). Finger joint board joining.

4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.
