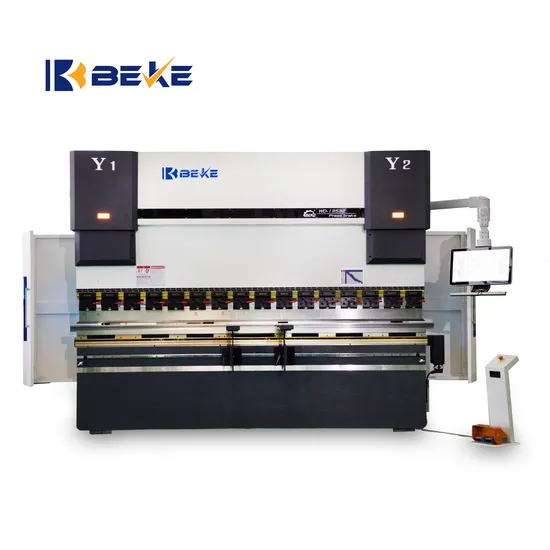

New Design Esa S875 135t3200 CNC Press Brake Bending Machine
Basic Info.
Model NO.
WE67K 135T3200 S875
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model
We67K 135t3200
Max Bending Width
3200mm
Max Opening Height
480mm
Slide Stroke
200mm
Throat Depth
400mm
Main Motor Power
11kw
Weight
9000kg
Transport Package
Cover with Plastic Film
Specification
3850x1850x2600mm
Trademark
BEKE
Origin
China
HS Code
8462299000
Production Capacity
50 Set/Month
Product Description
Product DescriptionTechnical Data
| ITEM | VALUE |
| Model | WE67K 135T3200 8+1Axis |
| Pressure | 135ton |
| Max bending length | 3200mm |
| Max bending thickness for 3m sheet | 5mm |
| Column distance | 2600mm |
| Slide stroke | 200mm |
| Max opening height | 480mm |
| Throat depth | 400mm |
| Main motor power | 11kw |
| Machine size | 3850X1850X2600mm(LxWxH) |
| Weight | 9000kg |
| Axes | Y1, Y2, X1 ,X2,R1 ,R2 ,Z1 ,Z2 |
| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| 21.5-inch multi-touch screen design Support for multi-touch applications Borderless, simple but powerful Support fingertip workpiece design Support tool shape import (.dxf ifl) Support tool library management Support the management of tools and mold fixtures Support data angle measurement system Support ESA 3D bending software Equipped with standard industry4.0 Modbus TCP interface | |
