4FT High Speed Vacuum Suction Plywood Veneer Stacker

4FT High Speed Vacuum Suction Plywood Veneer Stacker

US$10,999.00 1 Set (MOQ)

Basic Info.

Certification
CE
Brand
Mstar
Motor
Servo Motor
Paiting
Environmentally Friendly Water-Based Paint
Weight
Heavy Duty
Model
Latest
Size
4FT
Speed
High Speed
Transport Package
Container
Specification
heavy duty
Trademark
mstar
Origin
China
HS Code
84659600
Production Capacity
400set/Year

Product Description



MSTAR MACHNERY CO., LTD specializes in researching, developing, and manufacturing plywood machinery, covering the entire process from sawing, rounding, veneer peeling, drying, splicing and hot pressing. We are now the leading woodworking machinery manufacturer in China. Our machine body is primarily composed of key components produced using casting techniques. After welding is completed, a tempering process is employed to enhance the material's durability and relieve internal stresses. For the post-weld machining of the machine body, we utilize a gantry planing and milling machine to perform precise surface milling and drilling operations. By implementing these advanced techniques, we ensure our machines offer superior strength, precision, and long-term operational reliability. Thanks to these advanced manufacturing techniques, our equipment produces veneer with excellent uniformity, smooth surface finish, and precise dimensions. Our flagship product, automatic high speed veneer peeling production line, achieves precise control that traditional control technology cannot match. It increases the traditional veneer peeling speed from 40M/MIN to 80M/MIN, greatly improving production capacity and reducing labor, resulting in an efficiency increase of more than 60%. We are proud to have the best after-sales service team in China, dedicated to ensuring that our customers receive exceptional support no matter where they are. Whether you're in Asia, Europe, Africa, or the Americas, our highly trained professionals are available to provide on-site installation, commissioning, and training services. Our team is committed to not only setting up your equipment but also ensuring that your operations run smoothly from day one. With rapid response times and personalized support, we minimize downtime and help optimize your production processes. This level of service reflects our strong commitment to customer satisfaction and our goal to be a reliable partner in your success. With high-quality products, perfect services, and honest sales, the company has won recognition from customers at home and abroad. The company currently exports to more than 20 countries and regions, including the United States, Russia, Bulgaria, Turkey, Morocco, India, Pakistan, Thailand, Vietnam, Malaysia, Bangladesh, and Indonesia, and maintains long-term cooperative business relationships with them. We sincerely hope to cooperate, develop, and progress together with friends from home and abroad!

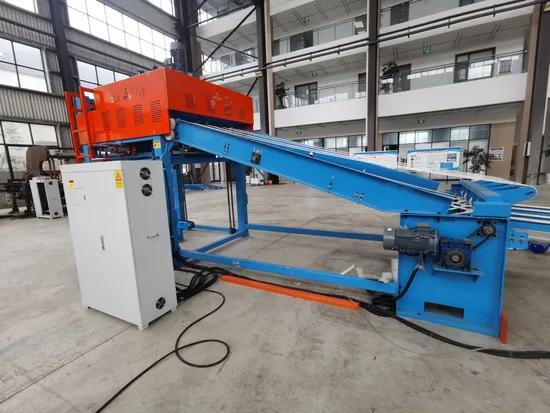

THIS IS 4FT VENEER PEELING LINE FOR PLYWOOD PRODUCTION
CIRCLED COLOR PART IS THE VENEER STACKER

FUNCTION: IT'S THE LAST STEL DURING PEELING LINE, THIS MACHINE IS USED FOR COLLECT PEELING VENEERS AUTOMATICALLY FOR FOLLOWING STEPS INSTEAD COLLECT VENEERS BY HAND
ADVANTAGE: HIGH EFFICIENCY AND SAVE LABOR, AND THE VENEERS WILL BE COLLECTED FITLY AND EASILY KNOW HOW MANY PCS VENEERS COLLECTED SINCE THE MACHINE HAS AUTOMATIC COUNTING FUNCTION ON SCREEN


DESCRIPTION UNIT PARAMETER
VENEER WIDTH MM 1300
VENEER LENGTH MM 400-1300
LIFTING TYPE HYDRAULIC LIFT
FORMAT VENEER CONVEY CHIAN AUTO CONVEY
SPEED ADJUSTABLE
VENEER THICKNESS MM 1-4
POWER KW 32.4
STACKING HEIGHT MM 1200
WASTE VENEER CONVEY HAVE
OVERALL SIZE MM 12000*3300*2500
WEIGHT KGS 3000KGS


WITH SENSORS IN LINE WASTE VENEERS WILL BE AUTOMATICALLY PICKED OUT AND CONVEY OUT
THIS IS OPENING AUTOMATICALLY WHEN WASTE VENEER COMES AND FALL DOWN FROM HERE
THIS BELT IS STRONG AND WEAR-RESISTANCE

WHEN VENEERS ARE FULL, THE STACK VENEERS WILL BE CONVEYED OUT AUTOMATICALLY
WE CAN PLACE THE CONVEY DEVICE IN FRONT OF THE STACKER OR SIDE OF THE STACKER, DEPENDS ON YOUR WORKSHOP
