Gooda CNC Duplex Milling Machine Precision CNC Twin Head Milling Machine for Metal Parts Hardware, 3c Products, Mold, Auto Parts, Steel Processing (TH-460NC)
| US$50,000.00-180,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TH-460NC
Type
Tool Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001, Ks(South Korea)
Condition
New
Transport Package
Steel Box
Specification
3.3*3.5m
Trademark
GooDa Manufacturer
Origin
Dongguan
HS Code
8459619000
Production Capacity
500
Product Description
Main Function:CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
The best choice of surface milling machine for 20-460mm square workpieces,sales leading, Equipped with Japan Fanuc system, high efficiency.Machine base with rigid, one piece iron construction,Powerful vertical hydraulic clamping with one main cylinder.

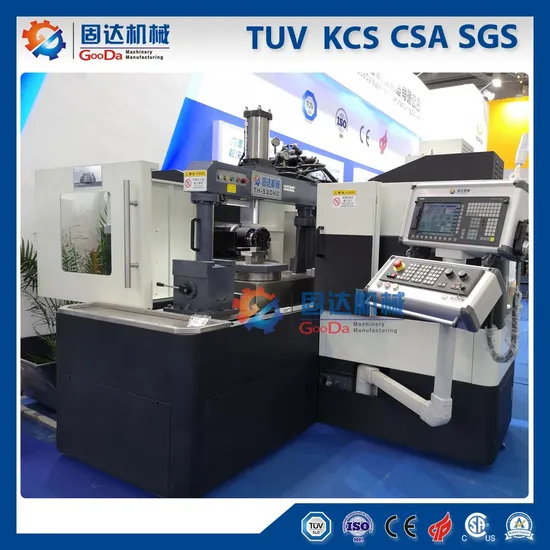

Detailed Pictures:
Specifications:
| Item | Unit | Model | |
| TH-460NC | |||
| Cutting Capacity | Control Axis | No. | 4 |
| Max.Milling Size (L*W*H) | mm | 460*460*190 | |
| Min.Milling Size (L*W*H) | mm | 20*20*10 | |
| One time Cutting Capacity | mm | 2*2.0 | |
| Travel | X axis | mm | 250 |
| Y axis | mm | 250 | |
| Z axis | mm | 720 | |
| Feed Speed | X/Y/Z Max. rapid feed rate | m/min | 10 |
| Max.Cutting feed rate | m/min | 10 | |
| Manual feed speed | mm/min | 1-1500 | |
| Spindle | Spindle speed | Rpm | 50-500 |
| Spindle taper | - | NT50 | |
| Cutter diameter | mm | 200 | |
| Motor | Spindle servo motor | Kw | 2*7.5 |
| X/Y axis feed servo motor | Kw | 2.5 | |
| Z axis feed servo motor | Kw | 2.5 | |
| Rotary table Servo motor | Kw | 1.8 | |
| Clamper hydraulic motor | Kw | 1.5 | |
| Work table | Worktable dimension | mm | 400*400 |
| Max.Loading weight | Kg | 500 | |
| Hydraulic Clamper | Cylinder No. | Pcs | 1 |
| Oil tank volume | L | 60 | |
| Lubrication system | Lubricating oil tank | L | 3 |
| Lubricating power | W | 18 | |
| Floor space require (L*W*H) | mm | 3.3*3.5*2.3 | |
| Machine weight | ton | 8.5 | |
| CNC system | FANUC or Mitsubishi | ||
If necessary, please consultation.
