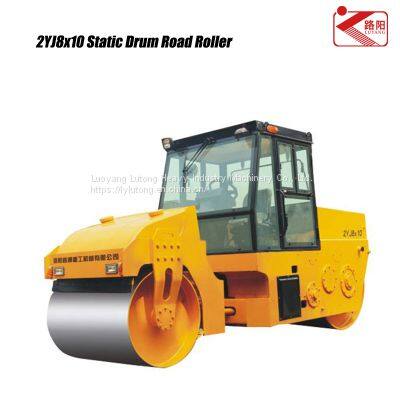

2YJ8x10 8000kg to 10000kg Three-drum static roller

2YJ8x10 8000kg to 10000kg Three-drum static roller

Product Details

Product Details

Product Description

Product Description
PRODUCT FEATURE
The 2YJ8x10 articulated three-drum static roller has a large unit linear load. It is mainly used for the compaction of pavement and foundation of gravel, crushed stone, asphalt concrete, coal slag, stone and other materials, which is the ideal compaction equipment for railway, highway, airport, port, dam and industrial construction site.
PARAMETERS
Item
Unit
Parameter

Operating mass
kg
8000/10000
Front linear load
N/cm
242/303
Rear linear load
N/cm
343/429
1st gear

2.62
2nd gear

5.18
3rd gear

10.3
Grade ability
%
20
Turning speed
mm
5050/6450
Overall dimension
mm
4400*1770*2620
Wheelbase
mm
3220
Ground clearance
mm
240
Diesel power/model
Kw
36.8/Xinchai 4D32T31/502
Water tank capacity
L
435

This product is continuously improved with technological progress. The difference between the above listed parameters and structural characteristics and the actual product shall prevail in the actual product.
