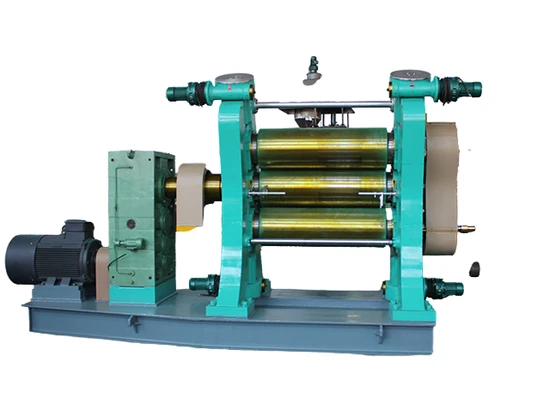

Xjd-90 Advanced Pin Type Calender for Rubber Machine

Product Description

Product Description Introducing the remarkable XJD-90 Advanced Pin Type Rubber Extruder, a pinnacle of modern engineering and innovation created to elevate the precision extrusion process for a wide array of rubber products. This cutting-edge cold feed rubber extruder is meticulously designed for the exacting demands of tire tread, tire sidewalls, hose profiles, cables, rubber sheets, conveyor belts, fireproof materials, and rubber flooring. Beyond its precision, this machine excels in supplying rubber for calendering machines, offering exceptional versatility and unmatched performance, making it an indispensable asset for your production line. Product Parameters Precision-crafted to the highest standards, the XJD-90 boasts a screw made from premium 38CRMOA1A nitrification steel, featuring an exceptional surface hardness of HRC60-70 and a robust hardness layer depth of 0.5-0.7 mm. The machine's durable body is constructed from ZG270-450 cast steel, complete with efficient force feeding rollers. The reliable gearbox utilizes a hard tooth surface with gear precision of the sixth grade, powered by a dependable DC motor. Equipped with a sophisticated temperature control system, it includes three cutting-edge temperature controllers, utilizing soft water with an inlet pressure of 0.2-0.3MPa, each with a heating power of 9 kW. Key components include a hot water circulating pump from the esteemed German Ville Company and advanced temperature controllers from the renowned Japanese RKC Company, ensuring precision with an accuracy of ± 2. Notable features include automatic water replenishment, alarm-triggered automatic shut-off, and automatic exhaust, ensuring operational excellence. The die head is customizable, catering to specific production needs with ease.

Type	XJD-60	XJD-90	XJD-120	XJ-150	XJ-200	XJ-250
Screw diameter(mm)	60	90	120	150	200	250
Length-diameter ratio(L/D)	12:1	12:1 14:1 16:1	12:1 14:1 16:1	12:1 14:1 16:1	12:1 14:1 16:1	12:1 14:1 16:1
Screw max. rotation speed(r/min)	80	60	50	45	32	26
Main motor power(kw)	22	45/55/55	75/90/110	160/180/200	220/280/355	355/450/480
T.C.U.	3*6kw	4*9kw	4*9kw	4*12kw	4*12kw	4*16kw
Pin number	5x6	8x6 10x6 10x6	8x6 10x6 10x6	8x8 10x8 10x8	8x10 10x10 10x10	10x1212x12 12x12

Our Advantages Qingdao Libang Industry Co., Ltd. is a distinguished leader in the industry, renowned for offering unbeatable prices, unparalleled quality, and prompt delivery. Our unwavering commitment to excellence and customer satisfaction makes us the trusted choice of clients who seek the best in the industry.After Sales Service Our dedicated and skilled technical engineering team is committed to providing extraordinary overseas service. From machine installation to hands-on workforce training, we ensure a seamless integration process, guaranteeing your operations run smoothly and efficiently.Company Profile Qingdao Libang Industry Co., Ltd. takes pride in being a frontrunner in delivering comprehensive rubber machinery solutions. Our expansive product lineup includes kneaders, banbury mixers, mixing mills, refiners, calenders, extruders, batch off coolers, plate curing presses, microwave curing machines, cracker mills, skiving machines, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, and rubber powder machines, amongst others. Celebrated for our competitive pricing, exceptional quality, and reliable delivery, we extend a heartfelt invitation to clients globally to establish enduring and mutually rewarding business partnerships. Join us in advancing growth across domestic and international markets on the foundation of equality and shared prosperity. FAQ Q1. WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2. ARE YOU A COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We have the SOP (Standard Operation Procedure) and all the production steps must follow this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experienced technical engineers for overseas service, they would help you install the machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is dependent on the machine options. Normally, the delivery time of a standard machine could be within 10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months, and spare parts will be dependent.
