Diamond Marble Wire Saw for Cutting

Diamond Marble Wire Saw for Cutting

US$33.00-48.00 10 Meters (MOQ)

Basic Info.

Model NO.
JINGSTAR
Tool
Quarry Wire Saw
Bead Diameter
11.5,11.0,8.8mm
Model Number
Wire Saw
Customized Support
OEM, ODM
Usage
Granite,Marble,Sandstone

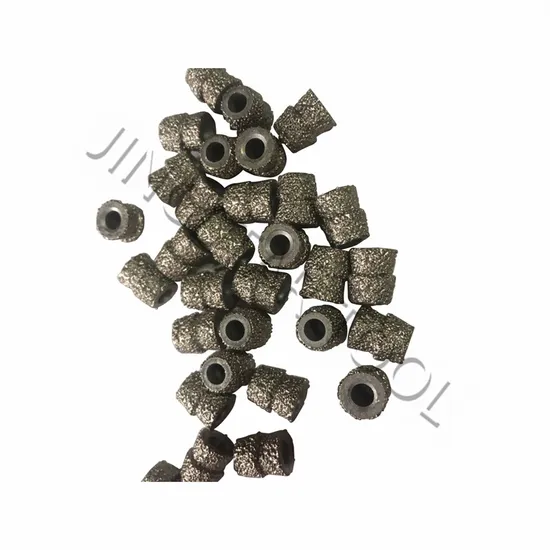

Bead Type
Sintered Beads, Electroplated Beads Vacuum Brazed
Material
Diamond
Origin
Fujian, China
Production Capacity
5000

Product Description

Diamond Granite Marble Quarry Stone Cutting Multi Wire Saw For Sale PRODUCT FEATURES: 1: Good cutting result with small slot and high efficiency. 2: Good sharpness and long life,low noise and eco-friendly. Diameter
(mm) Connection Beads/meter Linear Speed(m/s) Application
8.5/8.8 Plastic+spring 37 20-30 Granite Sandstone
11 Plastic 40 20-30 Granite Sandstone
11.5 Plastic 40 20-30 Granite Sandstone
11.5 Plastic+spring 40 20-30 Granite Sandstone
8.5/8.8 Plastic 37 25-35 Marble
11 Spring 28 25-35 Marble
Other specifications are available upon request.
Granite Diamond Wire Performance:
Application Assembly Stone hardness Feeding speed Output Lifespan
Granite quarry Dia11.5mm Sinter+Rubber Soft Granite 25-30m/s 4-6m2/h 15-25m2/m
Medium hard 22-26m/s 2-5m2/h 8-15m2/m
Hard Granite 18-23m/s 1-2.5m2/h 4-9m2/m
Granite Block dressing Dia11.0mm Sinter+Plastic Soft Granite 25-28m/s 60-100cm/h 15-25m2/m
Medium hard 22-25m/s 40-60cm/h 10-17m2/m
Hard Granite 20-23m/s 25-45cm/h 8-12m2/m
Granite profiling wire Dia8.8mm Soft Granite 25-29m/s 6-10m3/h 17-22m3/m
Plastic Medium hard 22-25m/s 4-6m3/h 12-17m3/m
Hard Granite 20-23m/s 2.5-4.5m3/h 10-14m3/m
Diamond Granite Quarry wire:
Diamond Granite Block dressing wire for Stationary wire saw machine

Diamond Granite Profiling wire for Stationary wire saw machine:

Diamond Marble Wire Performance:

Application Assembly Stone hardness Feeding speed Output Lifespan
Marble quarry Dia11.0mm Sinter+Rubber Soft Marble 35-40m/s 10-20m2/h 40-70m2/m
Medium hard 33-38m/s 8-16m2/h 25-45m2/m
Hard Marble 30-35m/s 5-8m2/h 20-30m2/m
Sinter+Rubber Soft Marble 35-40m/s 10-20m2/h 35~55m3/m
Medium hard 33-38m/s 8-16m2/h 15~35m3/m
Hard Marble 30-35m/s 5-8m2/h 10~25m3/m
Vacuum brazed +Spring Soft Marble 52-60m/s 15-30m2/h 33-58m2/m
Medium hard 50-57m/s 15-24m2/h 28-38m2/m
Hard Marble 45-53m/s 8-12m2/h 17-25m2/m
Diamond Marble quarry Wire Dia11.0mm Sinter+Rubber

Diamond Marble quarry Wire Dia11.0mm Sinter+Spring


Marble block dressing Wire & profiling wire perofrmance:
Application Assembly Stone hardness Feeding speed Output Lifespan
Marble Block dressing Dia11.0mm Sinter+Plastic Soft Marble 30-35m/s 90-130cm/h 40-60m2/m
Medium hard 28-32m/s 70-100cm/h 25-40m2/m
Hard Marble 26-30m/s 60-80cm/h 20-30m2/m
Marble profiling wire Dia8.8mm Sinter+Plastic Soft Marble 30-35m/s 100-150cm/h 35-45m3/m
Medium hard 28-32m/s 80-120cm/h 30-40m3/m
Hard Marble 26-30m/s 70-100cm/h 25-30m3/m

Sandstone Wire Performance:
Application Assembly Feeding speed Output Lifespan
Sandstone quarry wire D11.5 Sinter+Rubber 30-36m/s 4~10m2/h 10-20m3/m
Sandstone Block dressing wire D11.0 Sinter+Plastic 24-28m/s 60-100cm/h 15-25m3/m
Sandstone Profiling wire D8.8 Sinter+Plastic 24-28m/s 60-100cm/h 15-25m3/m
