2L 5L HDPE Lubricant Oil Bottle Personal Care Chemical Products Container Plastic Blow Molding Machine
| US$24,000.00-31,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DSB65I
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Screw Diameter
65mm
Machine Weight
5.5ton
Condition
New
Export Port
Shanghai
Power(W)
28.5 Kw
Company Attribute
Manufacturer
Guarantee Time
1 Year
Machine Lifespan
>20 Years
Voltage
Customer Specified
After-Sales Service
Engineers Available to Service Machinery Overseas
Cooling Fan Power
0.42kw
Head Heating Power
5.7kw
Extrusion Heating Power
12kw
Oil Pump Motor Power
5.5kw
Extrusion Motor Power
1.5kw
Transport Package
Film Packing
Specification
DSB65
Trademark
Dawson
Origin
Zhangjiagang, Jiangsu, China
HS Code
8477301000
Production Capacity
up to Product
Product Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT*** Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru.... Automatic Extrusion Blow Molding Machine DSB65I

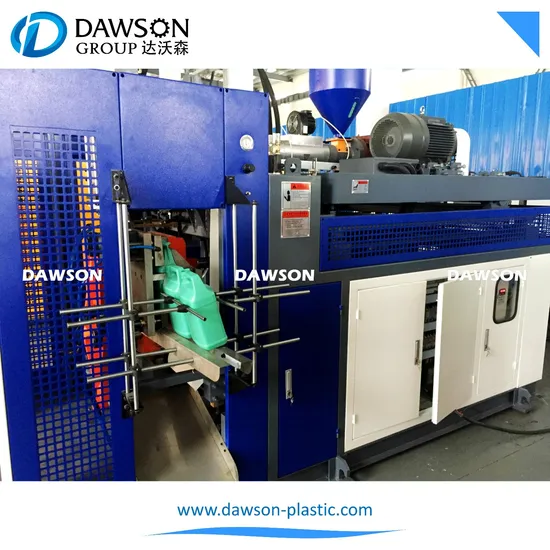

Automatic Extrusion Blow Molding Machine DSB65I
u Product: 0~5 L Bottles
u Power supply: 380/220v 50/60 Hz Tri-phase
u Die head number: Single / Double
u Suitable raw material: PE, PP, PVC, PS, PETG
u Output capacity: 140~160 pcs/h (5L) / with single head
300~320 pcs/h (1L) / with double head
| SPECIFICATIONS | UNITS | DSB65 SERIERS | |||
| Max container capacity | L | 5 | |||
| Number of die heads | Set | 1 | |||
| Dry cycle time | Second | 5 | |||
| Machine dimension (L*W*H) | M | 3 *1.9 *2.4 | |||
| Total weight | Ton | 3.5 | |||
| CLAMPING UNIT | |||||
| Clamping force | KN | 68 | |||
| Platen opening stroke | mm | 200-500 | |||
| Platen size | mm | 360*390 | |||
| Max mould size (W*H) | mm | 390*390 | |||
| Mould thickness | mm | 210-300 | |||
| Platen moving distance | Mm | 440 | |||
| POWER | |||||
| Extrusion motor power | KW | 15 | |||
| Oil pump motor power | KW | 5.5 | |||
| Extrusion heating power | KW | 12 | |||
| Head heating power | KW | 5.7 | |||
| Cooling Fan power | KW | 0.42 | |||
| Total power | KW | 38.62 | |||
| Average power consumption | KW | 21 | |||
| EXTRDER UNIT | |||||
| Screw diameter | mm | 65 | |||
| Screw L/D ratio | L/D | 24 | |||
| Plasticizing capacity | Kg/hour | 75~80 | |||
| Number of heating zone | Zone | 3 | |||
| Extruder heating power | KW | 12 | |||
| Extruder driving power | KW | 15 | |||
| Cooling Fan No | 3 | ||||
| Fan power | KW | 0.42 | |||
| DIE HEAD | |||||
| Head type | Continuous extrusion head | ||||
| Head No | 1 | 2 | 3 | 4 | |
| Central distance / mm | - | 160 | 110 | 85 | |
| Max die diameter / mm | 150 | 80 | 50 | 30 | |
| Heating zong No | 2 | 3 | 4 | 5 | |
| Heating power | 5.7 | 4.8 | 5.2 | 6.5 | |
| Plastic machines we provide .... |
| Extrusion Blow Molding Machine Injection Blow Molding Machine PET Blow Molding Machine Injeciton Molding Machine Injection Stretch Blow Molding Machine |
| Applictions .... |
| Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets. Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields. House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life. Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere. Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications. Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels. Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc. |
