Basic Info.
Crushing Capacity
100-500t/h
Dimension(L*W*H)
3940*4170*6900mm
Transport Package
Sea Fright
Production Capacity
500unit/Year
Product Description

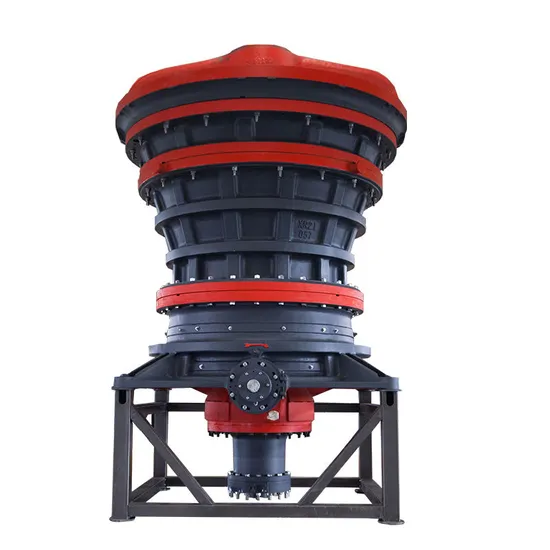

Product Description High Efficiency Cs75b Limestone River Pebble Basalt Spring Cone Crusher For Mining For Sale
CS cone crusher is mainly composed of frame, fixed cone assembly, moving cone assembly, spring mechanism, bowl shaft frame part and transmission; its auxiliary part is composed of electrical system, thin oil lubrication system and hydraulic cavity cleaning system .
When working, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, transmission shaft, small bevel gear, and large bevel gear. The axis line of the crushing cone rotates and swings under the force of the eccentric sleeve, causing the surface of the crushing wall to rotate from time to time. It approaches and sometimes leaves the surface of the rolling mortar wall, so that the material is continuously impacted, squeezed, bent and broken in the annular crushing cavity composed of the fixed cone and the moving cone. After many times of extrusion, impact and bending, the material is broken to the required particle size and discharged from the lower part.
Model | Cone diameter | Cavity type | Feed port size | Discharge size (mm) | Processing capacity (ton/hour) | Spindle speed (r/min) | Power (kw) | Weight (t) | Dimensions (mm) |
Closed edge (mm) | Open Edge (mm) |
CS75B | 900(3') | Small | 83 | 102 | 9-22 | 45-91 | 580 | 75 | 15 | 2821×1880×2164 |
Coarse | 159 | 175 | 13-38 | 59-163 |
CS110B | 1200(4') | Small | 127 | 131 | 9-31 | 63-188 | 485 | 110 | 20 | 2821×1974×2651 |
medium | 156 | 156 | 13-38 | 100-200 |
Coarse | 178 | 191 | 19-51 | 141-308 |
CS160B | 1295(4?') | Small | 109 | 137 | 13-31 | 109-181 | 485 | 185 | 27 | 2800×2342×2668 |
medium | 188 | 210 | 16-38 | 132-253 |
Coarse | 216 | 241 | 19-51 | 172-349 |
CS240B | 1650(5') | Small | 188 | 209 | 16-38 | 181-327 | 485 | 240 | 55 | 3911×2870×3771 |
medium | 213 | 241 | 22-51 | 258-417 |
Coarse | 241 | 268 | 25-64 | 299-635 |
CS315B | 2134(7') | Small | 253 | 278 | 19-38 | 381-726 | 435 | 315 | 110 | 4613×3251×4732 |
medium | 303 | 334 | 25-51 | 608-998 |
Coarse | 334 | 369 | 31-64 | 789-1270 |
