Simple Straightening / Slitting / Shearing Line/0.4-1.0mm

Simple Straightening / Slitting / Shearing Line/0.4-1.0mm

US$5,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
0.4-1.0mm thickness
Power Source
Electric
Feature
High Efficiency
Certification
CE
Warranty
12 Months
Customized
Customized
Advantage
Work Flexible
Condition
New
Main Motor
1.5kw
Straightenting & Slitting Motor
3kw
The Min. Slitting Width at Edge
40mm
Thickness
0.4-1.0mm
Transport Package
Container
Trademark
ERUDITE
Origin
China
HS Code
8462312000

Product Description

Product Description
SIMPLE STRAIGHTENING / SLITTING / SHEARING LINE/0.4-1.0mm
If customization:No
Type:Straightening / slitting / shearing line/0.4-1.0mm
Overall Dimensions: 5200mm×1800mm×1700mm (estimated only)
Total G.W.: 3600KG (estimated only)
Brand:Erudite roll forming
Detailed Photos

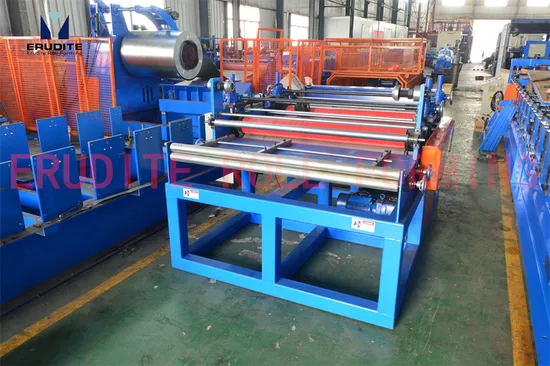

Simple straightening / slitting / shearing line/0.4-1.0mm
LAYOUT:
Product Parameters
Technical Parameters
The main technical parameters are for your inference only
(1) 5Ton*1250mm Hydraulic un-coiler
Description There are different choices, please turn to the catalogue of un-coiler
(2) Straightening, slitting and shearing machine
Polythene Film-On device, un-powered
Straightening Device with 5 over 4 shafts to remove the Coil-set
Straightening& slitting motor: 3KW
Total four sets of slitting tools, Max five trips at one time
The min. slitting width between two pieces of tools 70mm
The min. slitting width at edge 40mm
Electric guillotine, Main Motor=1.5KW
Working width: MAX.1250mm
Work thickness 0.4-1.0mm
Protection Mesh Cover Above Roll-former To Avoid Hands Go Inside
(3) PLC control system
PLC Siemens brand
Touch Screen Siemens brand
Inverter Shihlin or Panasonic brand
Encoder Omron brand
(4) Product rack
Description un-powered, 2 meters, 2 units
(5) Option: Re-coil device
(6) About us
Please visit the web site: eruditerfm.en.made-in-china.com for detailed information


Company Profile
Xiamen Erudite Machinery Co., Ltd is a professional manufacturer specializing in the design and production of roll forming machines and bending/curving machines to serve the metal building industry.
Before the inception of its establishment, Erudite invested and set up its own R & D team to enhance the technologies in design, production and quality control. Erudite has experienced engineers and technicians who have worked in this field of business for over 10 years individually. Erudite can provide customized, accurate and comprehensive design for machinery according to the clients' profile drawings and technical requirements. Erudite has actively invested in research and development, obtained a number of patents, and has been selected as a National High-tech Enterprise in 2021.Erudite equipped with professional production technical management personnel, supporting series supply chain services from design, production, and technical support to after-service. The professional sales team in Erudite is responsible for providing professional recommendation and solutions to clients before sales and after sales to ensure our customers can maximize their investment and meet their production requirements/demands with a fruitful return on investment.
Erudite is willing to be your sincere and trustworthy partner!
FAQ
Where is the ERUDITE products market?
ERUDITE products sell well not only in the domestic market but also other countries and regions such as in Asia, Africa,Erurope,South America,Australia etc, formed into EERUDITE special sales network throughout the world.
Is the ERUDITE company a trade company or manufacture company ?
Erudite company is manufacturer and developed for near 10 years as one of more influential companies in the manufacture industry of cold rolling mills /roll formig line.
How does Erudite company provide the oversea after-service?
If installation is needed, Erudite company will dispatch a technician to the buyer's factory abroad to assist regulating the machine.
How many months for ERUDITE company machine guaranteed ?
In correct operation & maintaining ,the machine is guaranteed for 12 months since leaving factory.
What's ERUDITE company terms of payment ?
-FOB contract:
30% payment by T/T is required as deposit within ten (10) business days since the contract signing date. 70% balance payment is required by T/T prior to shipment.
