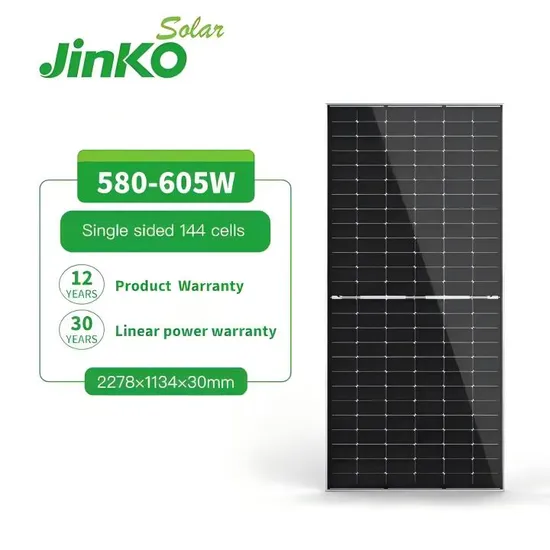

Jinko Tiger Neo N-Type 72hl4- (V) 580-600 Watt 590W Mono-Facial Module Solar PV Panels Price 585W Jinko Bifacial Renewable Energy for Home Use Original Factory
Basic Info.
Model NO.
Tiger Neo N-type 72HL4-(V) 565-585 Watt
Number of Cells
144cells
Application
Solar System
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Weight
27 Kg
Packing
36PCS/Pallets
Loading
720PCS/ 40′hq Container
Junction Box
IP68 Rated
Frame
Anodized Aluminium Alloy
Output Cables
TUV 1*4.0mm2
Maximum Series Fuse Rating
25A
Transport Package
Pallet
Specification
2278*1134*30mm
Trademark
Jinko
Origin
China
HS Code
85414300
Production Capacity
1000000watt Per Day
Packaging & Delivery
Package Size
227.80cm * 113.40cm * 3.00cm
Package Gross Weight
27.000kg
Product Description
| Specifications (STC) | ||||||
| Maximum Power-Pmax [Wp] | 580 | 585 | 590 | 595 | 600 | 605 |
| Maximum Power Voltage -Vmp [V] | 43.35 | 43.53 | 43.71 | 43.88 | 44.06 | 44.23 |
| Maximum Power Current -Imp [A] | 13.38 | 13.44 | 13.50 | 13.56 | 13.62 | 13.68 |
| Open-circuit Voltage- Voc [V] | 52.31 | 52.47 | 52.63 | 52.79 | 52.95 | 53.11 |
| Short-circuit Current -Isc [A] | 14.01 | 14.07 | 14.13 | 14.19 | 14.25 | 14.31 |
| Module Efficiency STC [%] | 22.45 | 22.65 | 22.84 | 23.03 | 23.23 | 23.42 |
| Power Tolerance | 0 ~ + 3 % | |||||
| Mechanical Characteristics | ||||||
| Cell Type | N -type Mono-crystalline | |||||
| No. of cells | 144 (72×2) | |||||
| Dimensions | 2278×1134×30 mm | |||||
| Weight | 27.0 kg | |||||
| Front Glass | 3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass | |||||
| Output Cables | 4.0 mm2(+): 400 mm , (-): 200 mm or Customized Length | |||||
| Application Conditions | ||||||
| Operating Temperature | -40 °C ~ +70°C | |||||
| Maximum System Voltage | 1000/1500 VDC (IEC) | |||||
| Maximum Series Fuse Rating | 25 A | |||||
| Packaging Configuration | ||||||
| Pallet Dimensions | 2308×1120×1249 mm | |||||
| Packing detail (Two pallets=One stack) | 36 pcs/pallets, 72 pcs/stack,720 pcs/ 40'HQ Container | |||||
