Automatic Rice Husk Hammer Mill Grains Grinder Crushing Straw Machine

Product Description

Automatic Rice Husk Hammer Mill Grains Grinder Crushing Straw Machine

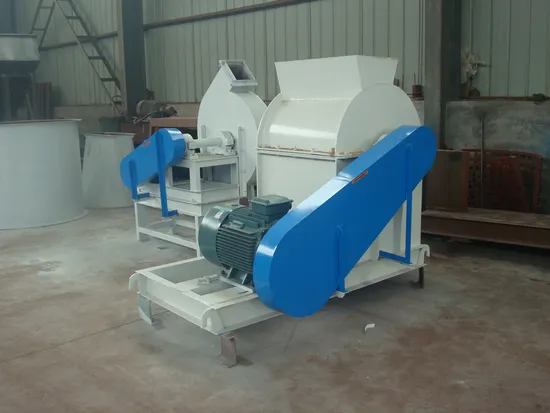

1. Brief introduction of the hammer mill
BX-CF system hammer mill adopts steel plate jointing structure, motor and rotor are installed on the same base, adopts dowel pin coupling transmission, balance the rotor check, can work be positive and negative, operation door interlocked safety device to ensure that the operation door cannot open.
Feed-in orifice is in the top of the hammer mill, can match various forms of feeder institutions, hammer arrange for symmetry.
2. Features of the wood chip and grain hammer mill
A)High capacity anfd quality
B)CE ISO SGS BV
C)Easy operation and good performance
D) Professional service
Quality assurance:
A. All the parts and spare-parts of the machines are new.
B. The warranty is 12 months
C. Owing to the design/material/ processing problem, we can change the spare-parts as free.
D. If the problems caused by the user, we can repaire the machines, and the user should pay for this.
3. Main Specification of the hammer mill

Date/Model	BX-CF600	BX-CF800	BX-CF1000	BX-CF1300
Moisture content of raw material	≤ 25%
Input length(mm)	≤ 10-40
Output size(mm)	≤ 5-12
Rotation speed (r/min)	1600-1800	1400-1600	1400-1600	1300-1500
Fly hammers (pcs)	40	64	80	104
Power (kw)	22-37	37-45	75-94	110-132
Capacity(t/h)	1-1.5	2 -3	3--4	4-5
Dimension	1800*1200*1500	2000*1400*1600	2500*1600*1700	3000*1900*1800
Weight(kg)	1300	1800	2800	3400

4. Raw material of the hammer mill
This machine could crush the small wood chips, wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on.
Also could crush the different grain to powder to make the feed meal.
5. Final products of the hammer mill
After crushed by this machine, the final powder could be reach to smaller than 5-12mm
The final chips size could be changed by change the knife QTY and also the knife length.
6. Place order or send inquiry we would like to know thefollowing information:
-What' your raw material?
-What' your raw material size and moisture?
-Capacity per hour you need?
7. FAQ:
Q1: Why choose us?
A: We are the professional manufacturer, which has abundant experience of the dryer, also we own research and development team.
Q2: I know little for this machine and production line, what should i do?
A: Please tell us your requirement: We will design the flow diagram for you, and further our engineer will designer the whole feed factory for you depend on your site.
Q3: Our worker can not know how to operation the production line, what shoud i do?
A: We has installation and after-sale service team, our engineer can go to give customer installation guide. If customer need, our whole engineer team also go to customer's country.
Q4: If the machine has a little mistake when produce and can not solve, what should i do?
A: Please contach us immediately, by email, SKYPE, or telphone. Our worker will give you the solution.
Related Products of Woodworking Machinery
1. Hot Sale Wood Pellet Mill
This wood pellet machine is suitable for making biomass particles such as sawdust, rice husk, paddy straw, sunflower stalk, hulls, forestry wastes pellet, etc.
2. Production Flow Chart of Complete 1T Biomass Wood Pelleting Plant Manufacturers
Wood Cutting --- Sawdust Grinding ---- Drying ---- Pellet Making --- Cooling & Screening ---- Packing

Introduction	Complete 1T Biomass Wood Pelleting Plant Manufacturers is the process of making waste materials into solid fuel. The biomass pellet mainly used for fuel.
Suitable material	Agricultural waste, and forest or wood residues from furnatures, such as sawdust, waste pallets, rice husks, corn cobs, maize stalks, peanut shells, wood logs, and etc.
Size	3-5mm, 10-15% moisture
Pellet size	6-12mm

Company Introduction:
We Zhengzhou LEABON are specialized in produing the wood pellet machine, feed pellet machine and the pellet product line-------Wood debarker, wood chipper, wood crusher, cooler, dryer, pack machine, baler etc. And also the filter press, wood briquette machine.
We can offer you the professional support and advice on the using of the machine. With the high quality and also the competitive price, our company have established many oversea clients. You are welcomed to vist our company and know more about the products.
Please feel free to contact us:
