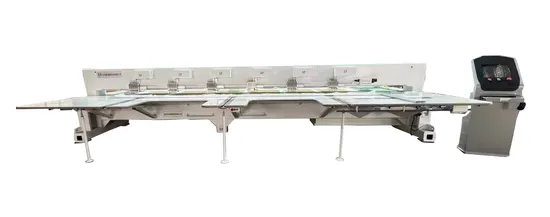

CNC High Speed Multi-Needle Leather Punching, Perforating Machine, Hole Punching Machine

Product Description

Product Description
Main feature:
1. Multi-type punching knife, easily exchange,can greatly meet the individual needs.
2. With the new gantry structure, fast punching speed and feeling of silence.
3. Mechanical punching, to ensure the original color and quality of leather.
4. With casters, can easily move the machine.
5. Customized special electronic control, can be used with other punching, sewing and embroidery machines.
6. Industrial vacuum silent cleaner can easily remove leather scraps.
Punching machine technical description/configuration
Maximum punching speed: 1200 holes/min; 5 types of punching tools can be installed
Punching tool number: 0.8mm, 1.0mm,1.2mm,1.5mm, 2.0mm round hole, can be installed other customized tool head
Vacuuming; Pattern reading mode: U disk; Drive motor: servo motor
Power supply: three-phase 380V/50Hz or single-phase 220V; Drawing format: DXF
Brush function can be added to manually sew along the brush
The processing area can be customized, for example 1000-2000mm
The number of heads can be customized, for example, 8 punching heads, doubling the efficiency
Can be customized film feed device, instead of kraft paper, improve efficiency
Provides hundreds of kinds of punching programming data

	product name	specifications and models	remarks
1	Single head CNC punch	MFR-P-1.5-900*600	1 piece at a time
2	Double head CNC punch	MFR-P-2.5-900*600	2 piece at a time
3	Single head CNC punch	MFR-P-1.5-1200*800	1 piece at a time
4	Double head CNC punch	MFR-P-2.5-1200*800	2 piece at a time
5	Four head CNC punchi	MFR-P-4.5-900*600	4 piece at a time
6	Six head CNC punch	MFR-P-6.5-900*600	6 piece at a time
