Versatile 6 Axis Robot 3D Laser Cutting Machine for Industrial Automation Solutions

Versatile 6 Axis Robot 3D Laser Cutting Machine for Industrial Automation Solutions

US$25,999.00-99,999.00 1 Set (MOQ)

Basic Info.

Model NO.
LC-1000R
Application
Home Appliance, Automotive Industry, Hardware,Medical Equipment,Mold Manufacturing
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Solid Laser
Laser Technology
Laser Control Fault Cutting
Wave Length
10.6um
Rated Output Power
1000W-3000W
Output Fiber Diameter
50-100mm
Axis Quantity
6
Protection Grade
Lp65
Arm Weight
250kg
Arm Positioning Accuracy
0.05mm
Gantry Height
2930mm
Transport Package
Wooden Box Package
Specification
>300kg
Trademark
Flasteed
Origin
China

Packaging & Delivery

Package Size
270.00cm * 170.00cm * 175.00cm
Package Gross Weight
700.000kg

Product Description

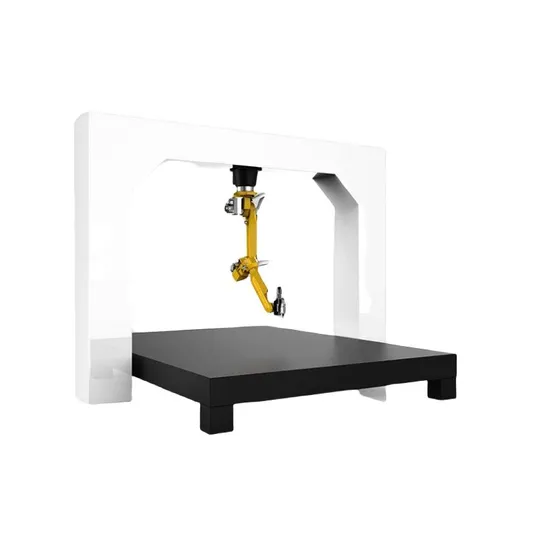

The 3D robot laser cutting system has high flexibility and modular design, meeting the requirements of high-quality cutting and consistency, especially suitable for cutting parts with large production scale and complex geometric shapes.
It's suitable for 3D cutting of metal materials such as stainless steel, carbon steel, alloy steel, silicon steel, titanium alloy, etc.
Features
1.High cutting precision, good quality, smooth and clean incision, small incision width and small thermal influence area;
2.The robot is eqiupped with gantry crane. It has large working range, good proximity of loading and unloading area, and can process large rice gold molding parts;
3.Uses optical fiber laser, good beam quality, stable power, low energy consumption, optical fiber conduction, small energy loss, safe protection, convenient installation;
4.Equipped with laser cutting head which has follow-up function, compact structure, light weight, focus lens dual protection and low cost of use.
Product Parameters
Item Specification
Laser type Fiber laser
Laser working mode Continuous mode
Laser wave length 10.6um
Laser beam deviation 2mm•mrad
Rated output power 1000-3000W
Output power stability ±2%
Output fiber diameter 50-100mm
Axis quantity 6
Protection grade IP65
Arm weight 250KG
Cooling mode Water cooling
Arm repeatability ±0.05mm
Gantry height 2930mm
Remark: The data in this table is for reference only and all is subjected to actual products.

Working Samples

Certifications

Packaging & Shipping

FAQ
Q: Are you a manufacturer or integrator?A: We are both a manufacturer and an integrator .Q: Can you customize the machine?A: We support OEM/ODM service and can customize the machine according to your requirements.Q: How long is your warranty period?A: We offer a one-year warranty, except vulnerable and consumable parts.Q: What certifications do the laser cutting machines hold?A: Our machines are certified with CE and ISO standards.Q: Do you support after-sales service overseas?A: Yes, we support after-sales service online and offline.Q: How long is the delivery time?A: Delivery time for standard machines: 7-15 working days Delivery time for customized machines: According to the degree of customization, about 1-3 monthsQ: What is the payment terms?A: We ship with full payment, and we can negotiate payment terms.
