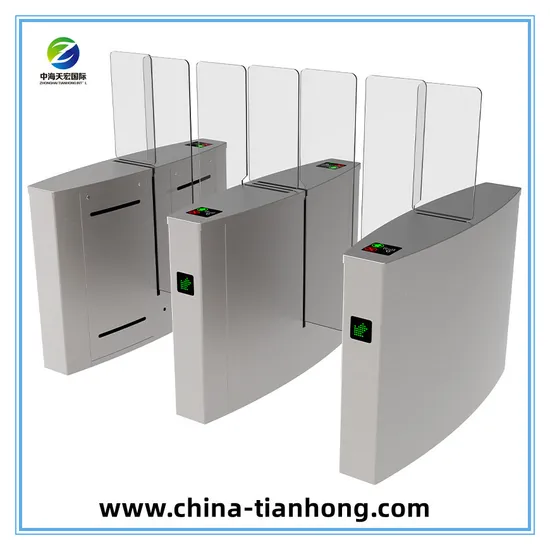

Automatic Barrier Gate Full Height Sliding Gate Turnstile

Product Description

The Automatic Barrier Gate Full Height Sliding Gate Turnstile represents a pinnacle in access control solutions. Combining the efficiency of an automatic barrier gate with the security of a full-height sliding gate turnstile, this system ensures robust entry management. Its seamless integration allows for controlled access in high-security areas. The automatic barrier gate facilitates smooth traffic flow, while the full-height sliding gate turnstile acts as a formidable physical barrier. Ideal for critical environments, it combines cutting-edge technology and durable construction to provide a comprehensive solution. This system stands out as a reliable and effective choice for securing access points in diverse settings.
Technical Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption: Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%,50HZ
4. Output:DC5V,DC12V,AC24V
5. Drive Mode: DC electric motor
6. Interface: 12 dry contact
7. Overall Dimension: 1500L x 185W x 1020H (mm)
8. Following Speed: 35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10. Operation Direction: Single/bi-directional
11. Working Environment: Indoor
12. Lane Width: 500mm-550mm
13. Opening angle:90±5°
14. Noise:≤50dB
15. Opening and Closing Time: 1 second
16. Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
