CNC 2-in-1 Polishing Grinding Buffing Machine for Tank and Dish End
| US$28,000.00-49,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JT-CNC
Type
Surface Grinding Machine
Processing Object
Tank Shell and Dish End Surface
Abrasives
Abrasive Belt
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE, SGS
Condition
New
Motor Brand
Wannan
Control Cystem
PLC/CNC
VFD Brand
Delta
Tank and Dish Head
Inside and Outside Surface Both
Surface Roughness
Ra<0.25um (Mirror Finish/Matt)
Machine Size
5500*1600*2900mm
Machine Weight
3000kgs
Input Power
10.92kw
Grinding Head Motor
4kw *2
Tank Roller Capacity
5tons
Turntable Capacity
5tons
Processing Material
Stainless Steel. Carbon Steel. Aluminum, Copper
Machine Consumables
Abrasive Belt, Flap Wheel.Hemp Wheel, Cloth Wheel
Keywords
Grinding Polishing Machine
Other
OEM and ODM Service Are Available
Transport Package
Sea Worthy
Specification
5500*1600*2900mm
Trademark
JOTUN
Origin
China
HS Code
846090
Production Capacity
200sets/Month
Packaging & Delivery
Package Size
10.00cm * 9.00cm * 7.00cm
Package Gross Weight
20.000kg
Product Description

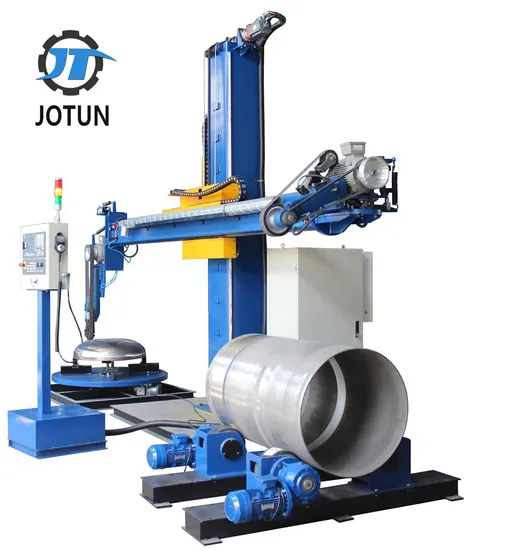

Product DescriptionJT-CNC Siemens Automatic Polishing Machine
This machine has a CNC control system,you just need to set up the program and it will do the polishing work itself.
This model for polishing tank and dish head inside and outside to meet different Ra.(hairline/mirror finish...). our standard machine can polishing tank length up to 4000 mm.diameter from 400-4000mm. about dish head polishing,standard machine can polish dish head heigh is 800mm.(all machine can custom-made)
| Product Features: 1. Grinding with abrasive belt, high efficiency, low noise and less dust. Using thousands of impeller (or wheel dipped emery cloth, wool wheel) polishing, mirror polishing can be achieved.2. Integrated belt polishing machine, which can respectively polish different parts such as tank body and head, grinding, and select the abrasive belt grinding head with processing precision Ra≤0.2μm (mirror effect). Both workpiece rotation and lateral feed are variable frequency stepless speed regulation, which further improves work efficiency.3. One device can polish the inner and outer surfaces of the tank and the head, equipped with two sets of grinding heads and two sets of workpiece turning mechanisms.4. GHS dust collector can be installed. |
| Specification of Machine | |
| Main Motor Brand | Siemens |
| VFD/Driven Brand | Siemens |
| Component Brand | Siemens |
| Machine Dimension | 5500*1600*2900mm |
| Machine Weight | 30000kgs |
| Contaol System | CNC |
| Polishing Material | Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel,etc. |
| Application | tank shell, cylinder, pressure vessel, reactor,dish head,dished end,etc. |
| Patent No. | 201120122490.4 |
| Noted | Our products all Non-Standard Customization(the above data for reference only) |
| Specifications of Working Piece | |||
| Work Piece Size | Tank/Vessel/Cylinder | Diameter | 200-5000 mm |
| Max Length | 6000 mm(customized) | ||
| Max Weight | 1/2/5/10/15Tons | ||
| Dish head/Dished end | Diameter | 400-5000 mm | |
| Max Height | 800 mm | ||
| Max Weight | 1/2/5/10/15Tons | ||
| Material | stainless steel,Aluminium,carbon steel,copper,etc. | ||
| Surface Roughness | Ra ≤ 0.2 μm (Get matte ,bright and mirror surface) | ||
| Product Efficiency | 10-12 square meters per hour | ||
Detailed Photos
Packaging & Shipping
Our Advantages
1.Provide 12 months warranty period, free replacement of machine spare parts, and provide technical support and service for life.
2.24-hour online technical support service can be provided through chat tool(email,whatsapp,wechat,etc).
3.Provide overseas engineer services.
4.We have exported many machine to more than 60 countries and area,
and more than 20 years surface treatment solutions.
Company Profile
China Jotun Polishing Machine supply China professional
automatic grinding machine for Metal tank shell,dished end,flat sheet,round tube,welding seam treatment Equipment,main products are cylinder grinding machine, stainless steel tank shell polishing machine,dish head polishing machine, round tube polishing machine,welding seam grinding machine.
widely used for pharmaceutical industry,food,water purification,water supply,chemical,and new energy.Including elliptical dish,cone dish head,spherical shell ,butterfly shell,pharmaceutical stainless steel tank,pressure vessel,brewery,cylinder,cosmetic,sanitary,reaction kettle,fermentation?tank,sterilizer,disinfection cabinet,filter, and LNG etc.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
