Rack and Pinion Style Passenger Cum Material Hoist Manufacturer

Product Description

Rack adn pinion style Passenger cum Material hoist

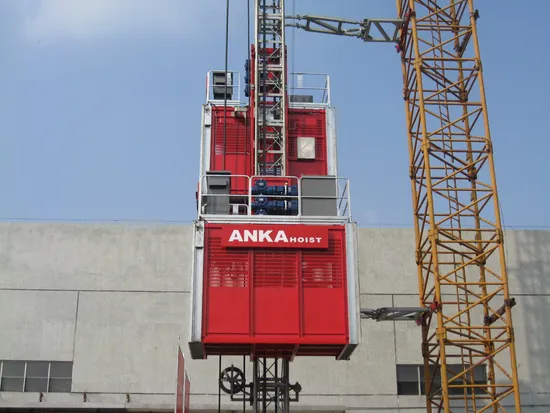

ANKA Passenger cum Material hoist
SC200GZ Single car lift
CAP. 2000KG
GALVANIZED MAST SECTION
SPEED:40M/MIN,
CABIN DIMENSION: 3.2*1.5*2.5/2.2M (L*W*H)
CUSTOMIZED DESIGN IS AVAILABLE.
ANKA provides a whole serial construction passenger cum material hoist in both single and twin cage to the customers, the capacity of cage ranges from 1000kg, 1200kg, 1500kg, 2000kg, 2700kg, to 3200kg, and with direct motor driven and frequency conversion driven to reach the speed of 36 m/min, 40 m/m, 63m/min and 96m/min, the maximum working height is up to 450 meters. And ANKA also provides the customized size of cage to satisfy the special demand from customers.
The electric components and the frequency converter for our PM hoist are from international famous brand, bearing from SKF, Terminators from Phoenix. ANKA also provide the Germany Nord / SEW motor and gearbox for our customer's specific requirement.

Model	Capacity (kg)	Lifting speed (m/min)	Motor power (kw)	Inverter power (kw)
SC200TD	2000	36	3 x 11	N
SC200GD	2000	0-40	3 X 11	37
SC200GZ	2000	0-63	3x18.5	55
SC270GZ	2700	0-63	3x18.5	75
SC200G	2000	0-96	3x22	90
SC270GS	2700	0-96	3x30	110
SC120/120GZ	2x1200	0-63	2x3x15	2x45
SC200/200GZ	2x2000	0-63	2x3x18.5	2x55
SC270/270GZ	2x2700	0-63	2x3x18.5	2x75
SC200/200G	2x2000	0-96	2x3x22	2x90
SC270/270GS	2x2700	0-96	2x3x30	2x110
