Jh-8 Explosion-Proof 7.5kw Motor Power Prop Pulling Winch
| US$4,000.00-4,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JH-8
Speed
Slow
Carrying Capacity
Middle-Level
Tonnage
5T
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Standard
National Standards
Model
Jh-8
Steel Wire Rope Average Static Tension
80 Kn
Drum Diameter* Width (mm)
280* 230
Drum Rope Capacity (M)
100
Steel Wire Rope Diameter
17
Steel Wire Rope Construction
6* 19
Motor Model
Ybk2-160m-6
Motor Power (Kw)
7.5
Voltage (V)
380/660
Winch Weight (Including Motor)
650
Transport Package
Wooden Case or Carton Case
Specification
1450* 512* 515 mm
Trademark
China Coal
Origin
Jining City, Shandong Province, China
Production Capacity
1000 Sets Per Month
Product Description
Introduction of JH-8 Explosion-Proof 7.5KW Motor Power Prop Pulling WinchJH series explosion-proof prop pulling winches are mainly for underground prop pulling, transportation, placing ground anchor, and chute shifting.JH series prop pulling winch adopted spherical worm gear pair drive, compact structure, are symmetrically and rectangle arranged with the sledge-shaped chassis, smooth and flexible for underground self-moving.zmwm10 Parameter of JH-8 Explosion-Proof 7.5KW Motor Power Prop Pulling Winch
| Model Parameter | JH-5 | JH-8 | JH-14 | JH-20 | JH-30 | |
| Steel wire rope average static tension (KN) | 50 | 80 | 140 | 200 | 300 | |
| Steel wire rope (m/s) average speed | 0.17 | 0.12 | 0.115 | 0.118 | 0.13 | |
| Drum | diameter* width (mm) | 276* 372 | 280* 230 | 400* 317 | 430* 530 | 550*560 |
| rope capacity (m) | 80 | 100 | 130 | 170 | 220 | |
| Steel wire rope | diameter | 15.5 | 17 | 21.5 | 24.5 | 30 |
| construction | 6* 19 | 6* 19 | 6* 19 | 6* 19 | 6* 19 | |
| nominal extension strength (M pa) | 1550 | 1550 | 1550 | 1550 | 1570 | |
| Explosion proof motor | Model | YBJ7.5-4 | YBK2-160M-6 | YBK2-200L1-6 | YBK2-200L2-6 | YBK2-280S-4 |
| Power (KW) | 7.5 | 7.5 | 18.5 | 22 | 45 | |
| Voltage (V) | 380/660 | 380/660 | 380/660 | 380/660 | 380/660 | |
| Rotate speed (r/min) | 1450 | 970 | 970 | 970 | 980 | |
| Overall size: length* width* height | 1450* 512* 515 | 1550* 530* 570 | 1955* 680* 815 | 2560* 968* 797 | 3300*1077*1034 | |
| Winch weight (including motor) | 620 | 650 | 1350 | 2600 | 4460 | |

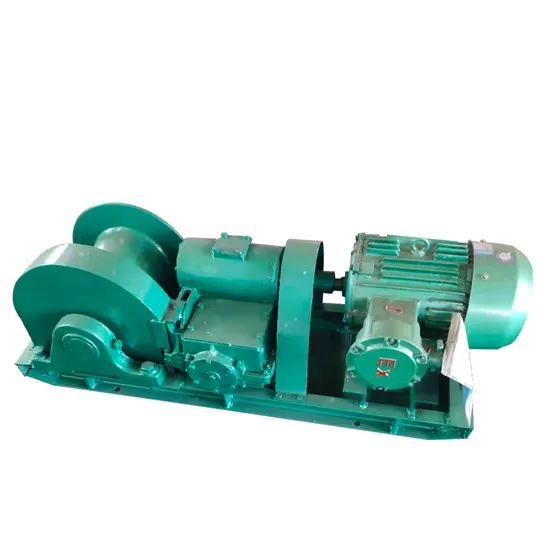

Pictures of JH-8 Explosion-Proof 7.5KW Motor Power Prop Pulling Winch
