12/24v custom professional high cri ra 80-95 2oz/3oz pcb 2835 led strip light

Product Description

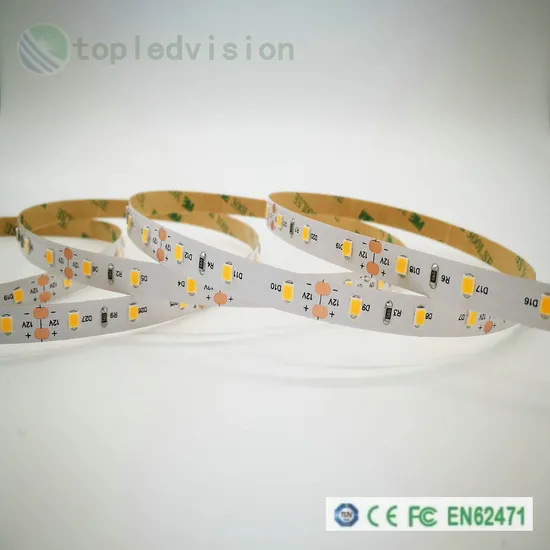

High Bright SMD2835 LED Strip 60LEDs/M 12W/M with IEC/En62471
Product Parameter

TLV-FS2835Q60W				Specification
				Model No: TLV-FS2835Q60W
				Product name: SMD2835 60LEDS/M LED strips
				LED Light Source: High qualiy SMD LED 2835 24-26lm/led
				Working volt: 12V/24V DC
				Power(w): 12W/M
				Product size: 5000*8(10)*1.3mm
				PCB Base: 2OZ Copper and double sides PCB
				Color: WW/NW/CW/R/G/B/Y/P
				View Angle: 120
				CRI(RA>): >80Ra
				IP rate: IP20(IP33/IP65/IP67/IP68
				Luminous: 1200lm
				Cutting Unit: 3leds(50MM)/6leds(100MM)
				Dimmable: Yes
				Wattanty: 2-3 years warranty
				Certifications: TUV CE, FCC, IEC/EN62471 and LM-80 testing

Our Advantage:

High quality SMD LED Our SMD LED use 99.99%(Au) gold wire and red copper pad. 24-26lm led lumen, which is better dissipation, long lifespan and low light decline. SMD LED passed LM-80 testing standard, less than 3% lumen down after 5000H working.

High quality double-side PCB We use Electrolytic copper as PCB materrial, the electrolytic copper is equipped with a dual circuit board , which is better heat disspation and more stable use.

Good color consistency and reliable quality We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.

Suppliers	Ours	Cheaper
Wire	99.99% gold wire	Alloy wire
Pad	Yellow copper	Iron
Led lumen	24-26lm	22-24lm
Light decline rate	3% after 5000H	10% -30% after 5000H
Working life	3-5years	1-2years
Packing	Coloful gift box	Aluminum foil bag
Certification	LM-80	Unknow

Technical Parameters:

2835 LED strip type	30LEDs/m	60LEDs/m	120LEDs/m	240LEDs/m
Power	6W/m	12W/m	16W/m	22W/m
Color	Warm white 3000K / Nature white 4000K / Cool white 6000K, R/G/B/Y/O/P
PCB width	8mm/10mm PCB
Voltage	12V / 24V DC
Luminous Flux	24-26lm/LED
IP rate	IP20 / IP65 / NANO coating / IP67 / IP68 optional
Dimension	5000*8(10)*1.3mm
Working lifespan	>30,000hrs
Warranty	2 years
Packing	5mts/roll, Color Box Packing

IP20 LED strip- bare/ non-waterproof, be used indoor
IP65 LED strip- glue protection, be used indoor and dust-proof/ moisture-proof
IP67 LED strip- silicone tube protection
IP68 LED strip- silicone tube with silicone filling inside, total waterproof, can be used outdoor enviroment
Features as follow:
1. LED source: 24-26lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm/10mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: More than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: have different IP level be able to install in any indoor/outdoor environments
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS, LM-80 and IEC/EN62471 photobiological safety compliant.
Variety of LED strips
LED Strip Installation Guide:
Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
Packaging and shipping :
1. Packaging: 5 meters/roll, box packing (132X132X15mm), 100 rolls/ctn.
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 50m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal or Western Union, Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
