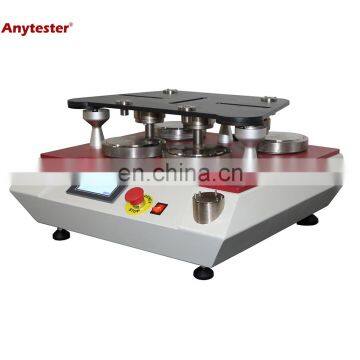

Martindale Pilling Tester

Product Description

Product Description
Product Description
Product Application
HY0401-4 Martindale Abrasion and Pilling Tester is used to determine the abrasion and pilling resistance of all kinds of textile by Martindale method. The circular test specimens are rubbed against the friction surface comprising known abradents at a defined force in the form of a Lissajous figure.

Test Standard
ASTM D4966, D 4970, D 3866	ISO 12945-2, ISO 12947.1	BS 5690, BS3424	DIN 53863, DIN 53865
JIS L1096	GB/T4802.2, GB/T21196	FZ/T20020	IWS Tm196/ TM112

SPECIFICATIONS FOR HY0141-4 Martindale Abrasion and Pilling Tester
Working postion	4
Specimen diameter	Ф140mm (for pilling test) Ф38mm (for abrasion test)
Abrading table diameter	Ф120mm
Effective diameter of abrader	A type(1.96N): Φ28.65±0.05mm
	B type(1.52N): Φ90 ±0.10mm
Weights for abrasion test	Specimen holder: 200g±1g Loading piece: 395g±2g, 594g±2g
Weights for pilling test	Specimen holder: 155g±1g Stainless steel disc: 260g±1g
Test speed	50r±2r/min
Loading pressure weight for specimen mounting	2385g±10 g
Counting range	0~999999times, settable
Power supply	1 Phase, AC110/220V±5%, 60/50Hz, 500w
Net Dimensions	885×600×410mm
Net Weight	85Kg

Main Features
1) 4 working positions to test 4 specimens at the same time
2) Microcomputer control, large color touch screen operation.
3) With two test method, small and large standard Lissajous curve, small Lissajous mode for pilling test, large Lissajous mode for abrasion test
4) Load pieces and key components made of stainless steel, nice and durable
5) Guide plate made of special aluminum alloy to ensure long time operation without deformation
Certifications
Detailed Images
Machine Parts
Name: Software
Brand: Anytester
Copyright : Anytester (Hefei) Co., Ltd.
Large color touch screen, Chinese and English language changeable, you can set all test parameter including test times, speed and method in the same screen, each position can run or stop separately at any time.
Main Parts
Name: Back view
Brand: Anytester
Original: China
Adopted high quality motor, stainless steel to make the bearing and balls, it make can make the equipment can run stable and Long-life.
Machine Parts
Name: Motor and bearing
Brand:
Original: Japan
Adopted imported high quality motor, stainless steel to make the bearing and balls, it make can make the equipment can run stable, accuracy and Long-life.
Main Parts
Name: Accessories box
Brand: Anytester
Original: China
We provide necessary consumables for customer to run the machine once they get it.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Net Size	885 (L) * 600 (W) * 410 (D)mm
Net Weight	85Kg
Packaging Details	Before place in wooden case, we will use film to cover the machine to protect it from steam during the transportation. And will use foam to protect it from knockout.

Packaging
Gross Size	450 (L) * 680 (W) * 600 (D)mm
Gross Weight	106.5Kg
Packaging Details	The normal package is special wooden case for export, don't need fumigated to save time and paper work.
