China Gold Supplier of CNC Glass Processing Machinery

Product Description

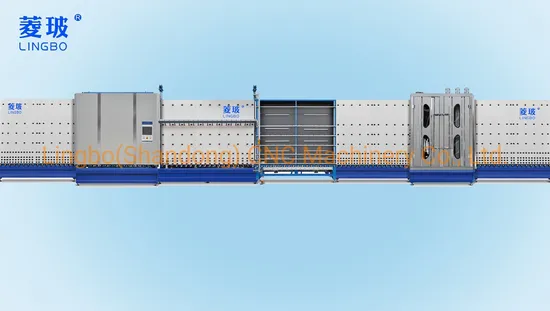

China Gold Supplier of CNC Glass Processing Machinery
1.Product Introduction of China Gold Supplier of CNC Glass Processing Machinery
The CNC Glass Processing Machinery is produced by us, and it has 32 pcs of patent certificate for this line. and we are the Gold Suppliers.
We are one of the professional manufacturer of the vertical CNC Glass Processing Machinery more than ten years, and our machines can not only process the triple glass and stepped glasses, but also the low-E and coated glasses. So just tell us your requirement, and we will choose the right machines for you. We are located in Shandong province, known for our hospitality and frankness. Please donnot hesitate to connect us, we are always here to help you.
2.Technical Parameter of China Gold Supplier of CNC Glass Processing Machinery

Model	Glass process Max size-mm	Glass process Max size-mm	Glass process Thickness -mm	Glass washing Speed-m/min	Glass transport Speed-m/min	Double Glazing Glass thickness	Power supply -KW	Space size L*W*H
ZKX- 1800*2400	1800*2400	1800*2400	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 26kw	18m *2m *2.85m
ZKX- 2000*2500	2000*2500	2000*2500	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 32kw	19.5m *2.2m *3.05m
ZKX- 2000*3000	2000*3000	2000*3000	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 38kw	22.8m *2.2m *3.05m
ZKX- 2500*3100	2450*3150	2450*3150	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 38kw	22.8m *2.3m *3.55m
ZKX- 2500*4000	2450*3950	2450*3950	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 42kw	29m *2.3m *3.55m
ZKX- 2700*4000	2750*3950	2750*3950	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 42kw	29m *2.7m *3.70m

Notes: a. if you have special glass size, please note us, we can design the line for you;
b. If you have special power supply, please note us earlier as well, we can specially make the line for you.
3.Products Feature of China Gold Supplier of CNC Glass Processing Machinery

WASHING MACHINE Washing Glass Thickness: 3-12mm Washing Speed: 0-12 m/min	ADVANTAGES: The whole washing section are made of stainless steel; Converter driving for Low-E brush rotatory speed; Automatically distinguish the coating side of coated glass and Low-E glass; Upper part of washing box use the bevel gear connects; Washing machine adopts oil less bearing.
SPACER ATTACHING SECTION	ADVANTAGES: Automatic detecting system for spacer frame; Automatic detecting system for glass; Hollowing out design, adopts the matte lights and The light tubes are controlled by two stages, saving energy; The aluminum spacer positioning adopts special design, accurate positioning, automatically inject the height and thickness of glass, saving labor; The backrest wheel adopts the inlaid design and the bearing is inside
OUTER ASSEMBLE SECTION	ADVANTAGES: Outer assembling glass, speed is fast; Adopts the Imported cylinder and photoelectric switch, make accurate positioning; can do three glass with two chambers; Special weight balancing system to make sure the workers and glass safety. Guideway, slide block, slide wheels adopts CNC processing.
PRESS MACHINE SECTION	ADVANTAGES: Adopts accurate positioning, make sure glasses press accurately; The plate of press machine adopts the CNC processing; The press open and close will adopts the air pump.
CONVERYOR SECTION	ADVANTAGES: Transmission wheel, the special design structure makes transmission wheel more durable; The conveyor section adopts the inlaid roller to facilitate the large glass delivery; The large frame uses 50mm × 100mm square standard steel tube, the equipment is more stable, enhance the stability of equipment operation. Can do three-sided glass (OPTIONAL).

4.Product Configuration Sheet for CNC Glass Further Process Machine Glass Processing Machinery

PROJECT NAME	BRAND	COUNTRY
Programmable PLC	OMRON	JAPAN
Frequency converter	SIEMENS	GERMANY
AC contactor	LS	KOREA
Low-E Glass Recognizer	OPTEX	JAPAN
Intermediate relay	HONEYWELL	USA
Breaker	LS	KOREA
Photoelectric switch	OPTEX	JAPAN
Proximity Switch	AUTONICS	KOREA
Pneumatic Solenoid valve	AIRTAC	TAIWAN
Pneumatic cylinder	AIRTAC	TAIWAN

5.FAQ
Q: Are you new to this CNC Glass Processing Machinery filed?
A: We are manufacturing these machines since 2014, and we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier of CNC Glass Processing Machinery?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: What is the service can you supply?
A: 1. Machine function introduction and quotation reply within 24 hours.
2.Industrial design or workshop layout design reply within 48 hours.
3.Customization feasibility reply within 72 hours.
4.Engineer onsite installation and operation guide if necessary.
5.Machine operation and maintenance guide service after sells.
6.Supply all the parts of the machine in whole lifetime.
7.PLC control system can be update and repaired in machine's whole lifetime!
8.Spare parts supplied in cost prices for all the clients.
