Factory Custom CNC Horizontal Milling Machine 3 Axis Hmc1814 Machining Center for Sale Ck6140 CNC Lathe
| US$11,400.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6140H
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
Product Type
High Precision Horizontal CNC Lathe
Net Weight
1700kg
Precision
High Precision
Spindle Nose
A2-6
Cooling Pump
Domestic 210W
Transport Package
Seaworthy Packing
Specification
2100*1300*1900mm
Trademark
JT
Origin
China
HS Code
8458110000
Production Capacity
1500 Sets/Year
Product Description
Product Parameters
| ITEM | UNIT | CK6140H | |
| General Rules | CNC system | GSK | |
| physical dimention | mm | 2100*1300*1900 | |
| The total weight of machine tool | kg | 1700 | |
| Scope of work | Max. workpiece rotation diameter of bed body | mm | 420 |
| Max.machining length | mm | 210 | |
| The X axis | mm | 295 | |
| Max. Z-axis stroke | mm | 750 | |
| Bed | Width of bed rail | mm | 335 |
| Max. apex distance | mm | 750 | |
| Spindle | Spindle head type | A2-6 | |
| Taper of spindle inner hole | MT6# | ||
| Main shaft aperture | mm | 58 | |
| Spindle speed | rpm | 200-3200 | |
| Spindle motor powwer | rpm | Ordinary motor 7.5/optional 11 | |
| Manual three -jaw collet dimensions | Manual three jaw chuck 250 | ||
| Servo shaft | X/Z ball screw | 2505/3210 | |
| X /Z axis motor power | nm | 6/10 | |
| Working accuracy | Fast feed speed | m/min | 6;8 |
| Positioning accuracy | mm | X axis (transverse)≤0.01 Z axis (longitudinal)≤ 0.015 | |
| Repeated positioning accuracy | mm | X axis (transverse)≤ 0.01 Z axis (longitudinal) ≤ 0.01 | |
| Roundness | mm | < 0.007 | |
| Consistency in diameter | mm | ≤ 0.03/Length 300 | |
| Flatness | mm | ≤ 0.02/Diameter 300 | |
| Surface roughness(steel parts) | um | <Ra1.6 | |

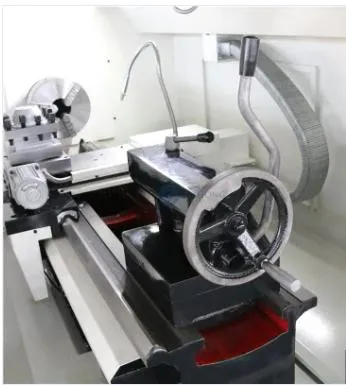

| Tailstock | Diameter of tailstock sleeve | mm | 65 |
| Tailstock sleeve stroke | mm | 150 | |
| Taper hole of tailstock center | MT4# | ||
