800mm Diamond Saw Blades, Diamond Cutting Blades for Concrete, Asphalt Cutting

800mm Diamond Saw Blades, Diamond Cutting Blades for Concrete, Asphalt Cutting

US$150.00-250.00 50 Pieces (MOQ)

Basic Info.

Model NO.
2.1.7
Outer Diameter
800mm (32")
Saw Power
10HP to 60HP
Cutting Material
Concrete, Green or Fresh Concrete, Asphalt
Segment Spec.
40X5X10mm X46nos
Thickness
5mm
Shape
Circular Saw Blade
Manufacturing Arts
Laser Welding
Customized
Customized
Kind
Diamond Floor Saw Blade
Usage
Concrete&Asphalt Cutting
Transport Package
Package
Specification
32inch
Trademark
Johnson Tools
Origin
China
HS Code
8202391000
Production Capacity
Johnson Tools

Product Description

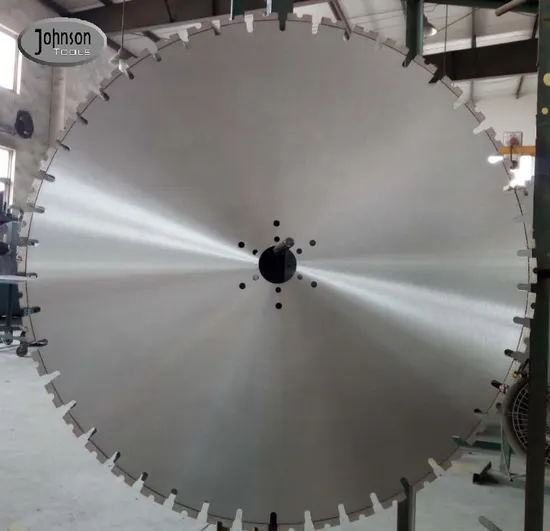

800mm Diamond Saw Blades, diamond cutting blades for Concrete and asphalt Cutting
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1. Description of 800mm Diamond Saw Blades, diamond cutting blades for Concrete and asphalt Cutting
800mm Road cutting blade is a cutting tool that is widely used in concrete cutting, precast slab cutting, old and new road cutting, grooving other hard and brittle materials. Road saw blade mainly consists of two parts, steel core and diamond segment; The Segment is cutting part, will be consumed during in the cutting, while the steel core is not, the reason why the diamond segment can play a role in cutting because it contains diamond, diamond as the most hard substance that rub and cutting the materials processed, while the diamond particles is wrapped in the diamond segment by metal.
2. Feature of 800mm Diamond Saw Blades, diamond cutting blades for Road Cutting 1) 100% Laser welding technology.
2) Undercut Protection segments provide enhanced lifetime when cutting Abrasive Materials.
3) Fits to Petrol Cutters, Bench & Floor Saw Machines.
4) Narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevent clogging.
5) Dry or wet cutting reinforced concrete, aggregate concrete, hot rolled asphalt, asphalt, asphalt over concrete&green concete.
6) Well exported to Taiwan, Australia, Hongkong, Poland, Singapore, Thailand, USA etc.
3. Specification of 800mm Diamond Saw Blades, diamond cutting blades for Concrete and asphalt Cutting
Diameter:800mm
Segment thickness:4.8/5mm
Segment height: 12mm or 10mm or 15mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
Inch Diameter
(mm)
Segment length
(mm)
Segment thickness
(mm)
Segment height
(mm)
Segment number
(nos)
32" 800 40 4.8/5 10 46
32" 800 40 4.8/5 12 46
32" 800 40 4.8/5 15 46

Other size floor saw blade we could do as following
OD (mm) Teeth specification Hole(mm)
Length (mm) Thickness (mm) Height (mm) Number
350 40 3.2 10/12/15 24 25.4
400 40 3.4 10/12/15 28 25.4
500 40 4.0 10/12/15 36 25.4
600 40 4.4 10/12/15 42 25.4
650 40 4.8/5.0 10/12/15 42 25.4
750 40 4.8/5.0 10/12/15 46 25.4
900 40 4.8/5.0 10/12/15 52 25.4
1200 40 4.8/5.0 10/12/15 68 25.4
1500 40 4.8/5.0 10/12/15 90 25.4

4. Packing and Shipping 5pcs 800mm laser welded wall saw blades are packed in one plywood, gross weight per plywood is limited within 90kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Client Feedback
7. Our Related Products
8. Certification
9. Our Stock
10. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
