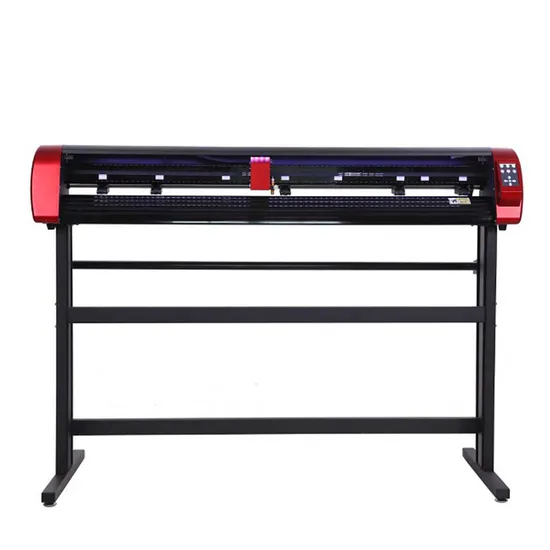

Boway V48 Cutting Plotter Mobile Sticker Cutter
Basic Info.
Model NO.
v48
Species
Cutting Plotter
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Blade
Computerized
Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials
Transport Package
Carton
Specification
1550*360*360mm
Trademark
Boway
Origin
China
Production Capacity
500/ Month
Product Description
******The pricture and specifications are subject to change without prior notice. ************Any question, please confirm with our sales manager.******
******All rights of photos and imaging reserved by Boway. ******
Cutting plotter
| Model | V24 | V48 | |
| Max media width | 720mm | 1350mm | |
| Max cutting width | 610mm | 1240mm | |
| Indicate dimensions | 900*360*360mm | 1550*360*360mm | |
| Packing size | 1000*360*388mm | 1620*360*388mm | |
| Packing Gross weight | 18kg | 39kg | |
| Max force | 2000g | 2000g | |
| db values | 75 | 75 | |
| Number of heads | 1 | 1 | |
| Floor stand | option | Yes | |
| Auto contour cut | Camera | Camera | |
| CorelDRAW directly | Yes | Yes | |
| Power supply, V/Hz | 220/50 | 220/50 | |
| Laser engrave option | No | No | |
| Scratch engrave | Yes | Yes | |
| Motor | stepper | ||
| Working environment | +5°C - +35°C | ||
| Processor memory | 128MB | ||
| Cutting precision | +/- 0.01mm | ||
| Repeat precision | 0.082 mm | ||
| Max moving speed | 700mm/s | ||
| Max cutting speed | 600mm/s | ||
| Connector interface | USB flash/ WIFI(option)/ USB cable | ||
| Power | < 100W | ||
