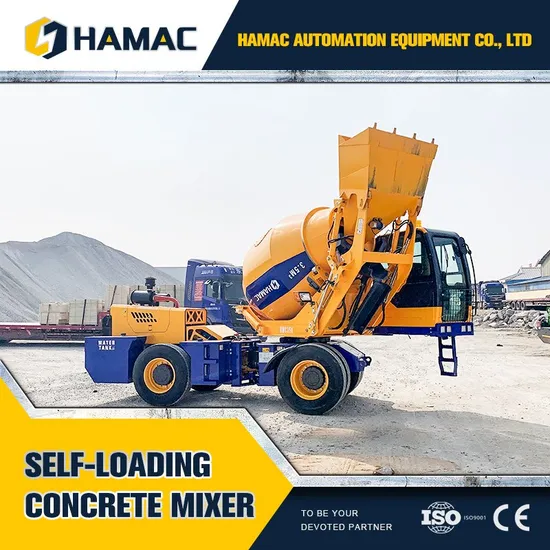

Manufacturer Mobile Self Loading Concrete Mixer Machine 4m3 Diesel Mini Small Cement Truck Mixer
| US$12,000.00-43,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HMC350
Capacity
10-14m�/h
Certification
CE, ISO
Condition
New
Main Material
Alloy Steel, Carbon Steel
Mixing Capacity
5.6m3
Mixing Drum Shape
Drum
Power Source
Diesel
Safety Features
Anti-Slip Feet, Emergency Stop Button, Safety Lock, Splash Guard
Stirring Type
Forced
Warranty
1 year
Working
High Speed Mixer
Weight
8800 Kg
High Speed
0-30 Km/H
Low Speed
0-9 Km/H
Rated Power / Rpm
85kw/2200rpm
Maximum Torque / Rpm
410n.M/2400rpm
Discharge Capacity
3500L
Transmission
Full Hydraulic, 4 Wheel Drive
Geometric Capacity
4740 L
Loader Control
Hydraulic 4 Way Stick
Transport Package
Nude Packed in Container
Specification
7600x2800x4180 mm
Trademark
HAMAC
Origin
China
HS Code
87054000
Production Capacity
20 Pieces/Month
Packaging & Delivery
Package Size
760.00cm * 280.00cm * 418.00cm
Package Gross Weight
8800.000kg
Product Description
Famous brand engine YUCHAland CUMMINS as options;
Equipped with famous brand
hydraulic system for
stable work performance;
All the functions controlled by
joystick and buttons. An electronic
weighting system and printer is available,
The weighing scales monitor
is at the operator's convenience
to certify 100% quality concrete is produced.
Equipped with hydraulic cylinder
to lift the rear part of mixing
drum to increase the discharging
speed;
Equipped with vibrator on the
feeding hopper to avoid sand
sticking to inner wall of hopper;
Equipped with double stage air
filter to protect the diesel engine,
Equipped mixing paddle inside,
specially designed for dry mixing process;
Water pump has the ability to
draw water from any water
source. Water is pumped
through the flow meter to
ensure the right amount of water is
added into the mixer drum.
Equipped with high pressure washing system,
you can make the machine clean
immediately after finishing concrete pouring;
Well-decorated cabin
for driver equipped with
air conditioner; more comfortable;The vehicle is equipped
with cameras to monitor
the surrounding area in
real time to ensure the safety
of you and the surrounding area.
| Name | Item | Specification | |
| Net | 8800 KG | ||
| Transmission | Full Hydraulic, 4 wheel drive | ||
| Brake | Air Brake | ||
| Chassis | Off-road, double tyres of front axle, with AC, | ||
| Loader bucket | capacity | 0.6m3 | |
| Control | Hydraulic | ||
| Tilt angle | 20% | ||
| Speed | High | 0-30 KM/H | |
| Low | 0-9 KM/H | ||
| Mini turning radius | 5300mm | ||
| Engine | Type | YUCHAI | |
| Rated Power/RPM | 85KW/2200RPM | ||
| Max. Torque/RPM | 410N.M/2400RPM | ||
| Cylinder | 4 | ||
| Starter | Electric | ||
| Cooling type | water cooling | ||
| Maxing Drum | Geometric Capacity | 4740 L | |
| Discharge capacity | 3500L | ||
| Bank Angle | 16 ° | ||
| Rotation Angle | 270° | ||
| Chute | Swing Angle | ≥50° | |
| Angle control | Hydraulic | ||
| Loader control | Hydraulic 4 way stick | ||
| Dimension | 7600x2800x4180 mm | ||
