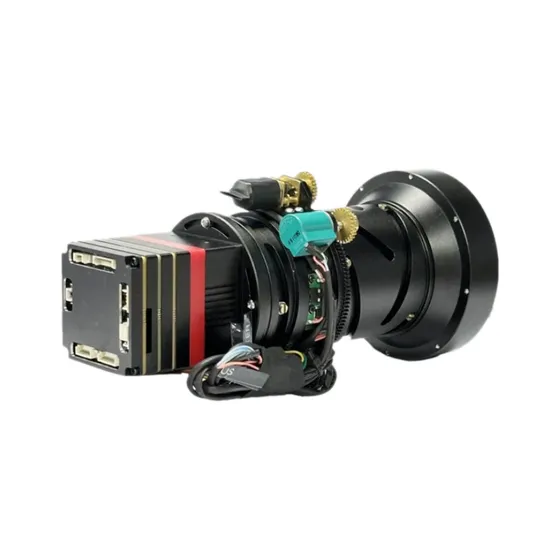

384X288 15-75mm Zoom Lens Environmental Monitoring Thermal Imaging Sensor Module
Basic Info.
Model NO.
CQ-LTML45C12-75AH
Output Signal Type
Digital Type
Production Process
SemiConductor Integrated
Material
Semiconductor Material
IP Rating
IP67
Certification
CE
Customized
Customized
Resolution
384X288
Frequency Range
8um-14um
Pixel Size
12um
Lens
15-75mm Zoom
Analog Output
CVBS
Network
100m Network Port
Communication Port
RS232, RS485
Transport Package
Carton
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
1000 PCS / Month
Product Description
Description:. Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.. Supports network access and has rich image adjustment functions. Support RS232, 485 serial communication. Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function. Supports Micro SD/SDHC/SDXC card storage up to 256G. Rich interfaces for easy function expansion. Can be easily integrated into all types of vehicles as well as portable, hand-held or highly mobile devices| Model | CQ-LTML45C12-75AH |
| Detector type | VOx Uncooled thermal Detector |
| Effective Pixels | 384x288 |
| Pixel size | 12μm |
| Response band | 8~14μm |
| NETD | ≤35mK(@F1.0, 300K) |
| Lens | 15 ~ 75mm motorized zoom |
| FOV | 17.4° x 13.1° ~ 3.5° x 2.6° |
| F value | F1.0 ~ F1.1 |
| Focus | Auto focus |
| Interface Protocol | ONVIF (Profile S, Profile G), SDK |
| Resolution | 25fps (384x288) |
| Image settings | Brightness, contrast, and gamma are adjustable through the client or browser |
| Network Interface | 100M network port |
| Analog Output | CVBS |
| Communication serial port | RS232, RS485 |
| Storage function | Support Micro SD/SDHC/SDXC card (256G) offline local storage, NAS (NFS, SMB/CIFS are supported) |
| Power supply | DC12V±10% |
| Operating temp. and humidity | -30ºC~60ºC, humidity less than 90% |
