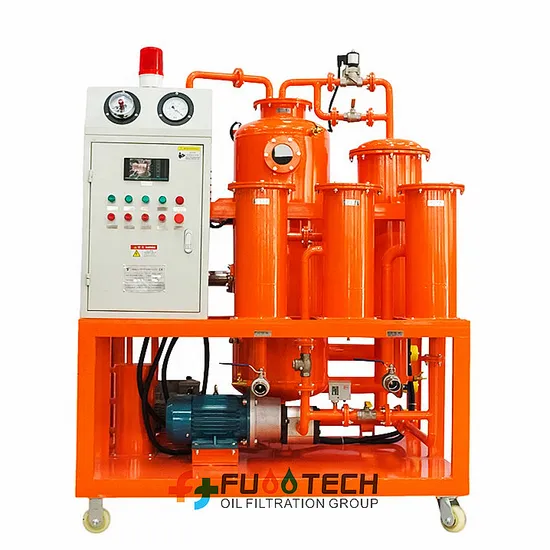

Fuootech 18kw Heating Power Portable Hydraulic Oil Filter Cart Machine

Product Description

FUOOTECH Series HOC Vacuum Lubricating Oil Purifier for Industrial Lube Oils
Brief Introduction:
Series HOC is used to purify and recover various industrial lubricating oils such as hydraulic oil, refrigeration oil, coolant oil, gear oil, mechanical oil, heat treatment oil, quench oil, etc…
Lubricating oil contaminated by water, gas, impurities will decrease the life of machines and equipments. Series HOC has perfect capability of removing impurities, gas, water and doing deep precision filtering. After purification, the oil can be reused in various industrial equipment and reduce ecological disposal problems.

Series HOC is widely applied in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc. And it is the most reliable, versatile, durable, and user-friendly purification systems in the industry nowadays.
Features: Advanced dehydration and gas separating system, duplex 3D stereo-evaporation technology ensures fast speed removal of water and gas in the oil. Strong ability of breaking emulsification, remove more free water and dissolved water content. Strong ability of removing particle & impurities through multi-stage high precision filters. Advanced automatic medium cooling system, improving working efficiency. Electric control panel with vacuum indicator, pressure indicator, digital type temperature controlling system with indicator and automatic shut-down system.
Top-quality components, good mechanical performance and workmanship ensure years of maintenance-free operation and performance Advanced temperature controlling system controls the oil's temperature and heater's working automatically High quality pressure controller keeps the whole operation safely. Adopt Double-infrared fluid level auto-control systems which can control oil inlet and oil outlet quantity automatically. Adopt a trinity of interlocked preventive device to keep heater, oil pump and filters safe and reliable.
Technical Specification:

Item	Unit	HOC-10	HOC-20	HOC-30	HOC-50	HOC-100	HOC-150	HOC-200		HOC-300
Flow rate	L/H	600	1200	1800	3000	6000	9000	12000		18000
Vacuum degree	Mpa	-0.06 ~ - 0.095
Working pressure	Mpa	≤0.4
Temperature Control Range	ºC	0 ~ 100
Operation Temperature	ºC	50 ~ 70
Demulsification	Min	New oil≤15min, running oil≤30min
Power supply		380 VAC, 50 Hz, 3 Phase (or as per required)
Working noise	DB (A)	≤ 65 ~ 90
Electric heating power	KW	18	24	26	30	48	60		96		135
Total electric power	KW	19.3	25.3	27.6	32.6	56	69		106.5		147
Inlet (outlet) caliber	mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф50		Ф50		Ф60
Weight	Kg	450	550	600	750	850	1000		1200		1500
Dimension (L × W × H)	mm	1500 x1000 x 1500	1550 x1050 x1600	1600 x1050 x1650	1600 x 1150 x1700	1750 x1250 x 1800	1900 x1600 x1950		1900 x1700 x2000		2100 x1700 x2100
Oil Result after Purification		Moisture (water content) ≤100 PPM (remove 100% of free water and 99%of dissolved/emulsified water)
		Gas Content ≤0.01%
		Suspended Particles (Filtration precision) ≤ 5 micron
		Demulsification New oil≤15min, running oil≤30min
		Cleanliness ≤NAS 1638-Grade 5

Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
