sheet cutter with slitter

Product Description

Product Description

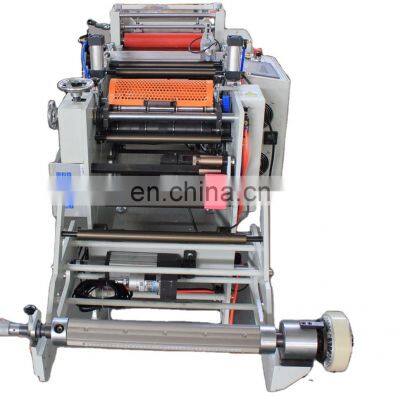

sheet cutter with slitter
crosswise cutter machine
has a 14.2" wide blade, variable speed, adjustable tray and built in automatic unwinder. 220 Volts or 380 Volts , please choose
Able to cut plastic, Lycra, cloth, canvas, denim, rubber, neoprene, graphite, composites, vinyl, paper, cardboard, leather, even metals such as copper and aluminum.
packaging paper cutting machine with slitting function
this kind machine employs mircocomputer digital controller to set belt cutting length ,
and its ergonomically designed , easy operation,the depth adjustable knife performs complete cutoff and half cutoff function.
sizing cutting for insulation paper ., plastic sheet and PP film etc
This packaging paper cutting machine with slitting function is suitable for cross cutting the web-form materials. It has features such as computer control, converter speed regulation, constant-length setting, automatic counter, and sound-ray alarm system, etc. Its compact in structure, innovative in design, and high in automation. It is necessary equipment of cross cutting the web-form materials into sheet form materials.
sheet cutter with slitter
1,Electrical listing :

Touch Screen	WEILUN	Made in TAIWAN
Programmable Controller	MITSUBISHI	Made in Japan
Servo Driver	YASKAWA	Made in Japan
Servo Motor	YASKAWA	Made in Japan
Motor of cutting knife	TPG	Made in Japan
AC Contactor	RENMIN	(Shanghai) Made in China
20A Solid State Relay	Guguang	(Shanghai) Made in China
Electric eye	Panasonnic	Made in Japan

2, Functions :
1, the machine uses microcomputer device, set transverse length, number, volume, etc., with automatic meter.
2, the choice of the central PLC program control and L touch screen operation procedures, Servo motor drives, frequency control.
3, set automatic lifting material platform to reach the sheet after the cut neat, easy to organize.
4, the use of magnetic brakes unwinding tension control, ensuring smooth feeding, consistent tension.
5, the feed mechanism using ultrasonic sensors to control automatic feeding
3, Application:
Sizing cutting for Paper,aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.
4. Pictures
Unwinding side
Touch Panel for simple operation
The after cut sample
Cutting part:
Rectification system
Slitter
5, Main technical parameters:

Item No	Voltage	Power	Net weight	Gross weight
DP-360CQ	380V 50HZ	1.5KW	550kgs	600kgs
Cutting length	Cutting width	Packing size	price	Shipping term
0.1-9999.9mm	1-360mm	1780*1120*1280mm	please inquiry	FOB Shanghai Or CIF destination port

this machine video
https://youtu.be/Y43Lm2yOOhg
https://youtu.be/6zbdAmY8t8A
other similar machine video below : roll to sheet cutting machine video 500mm
http://youtu.be/hlw7YjXucf0
https://youtu.be/TddZP9BJos4
https://youtu.be/hlw7YjXucf0
http://youtu.be/StpI-7gi1io filter paper slit and cut sheet cutting machine
https://youtu.be/ZF8X4zPPlVM 600mm sparkle material cutting to sheet
https://youtu.be/Cqm_Ah-FCkw 500mm green pvc roll to sheet cutter
http://youtu.be/FKYZw7SKQZs?list=UUKzn2_YUjZc_nkjjFRC07NQ
/watch?v=wbJhPKudBYA&list=UUKzn2_YUjZc_nkjjFRC07NQ&index=13 ( 800mm cutting PVC )
http://youtu.be/Pp5_tqE7QR4?list=UUKzn2_YUjZc_nkjjFRC07NQ (800 mm )
http://youtu.be/x_A6leioBek?list=UUKzn2_YUjZc_nkjjFRC07NQ ( 1000 mm )
http://youtu.be/KYlL-HxKAGM 550 kiss cut and through cutting machine
https://youtu.be/XvDXNd42zOk printting paper with photocell sheet cutting machine
https://youtu.be/zULKzvewh2s 500mm
