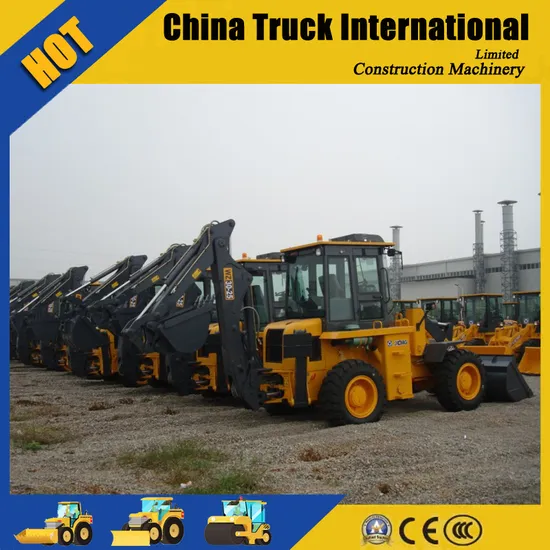

Wz30-25 Mini Tractor Front End Loader Backhoe

Product Description

WZ30-25 mini tractor front end loader backhoe
1. The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine.
2. It is the new generation model of the development based on the same kind product technique in domestic and international.
3. Having adopted four-wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.
4. It is extensively used in the road maintenance, farms and developments, getting clay for making brick, piping builds, the cable builds, parking virescence and the excavating of the road opens to dig, breaking up.etc.
5.This machine has below characteristics: The Yuchai engine: low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability.
6. The spirit valve control take type brake system and parking brake system move two unite as one,when there is trouble in the gas brake system, it can make in time brake automatically,so it is more safety.
Main parameters:
Digger capacity :0.3m3
Bucket capacity :1m3
Main configuration
* Equipped with Yuchai engine.
* 4*4 driving
* Italy imported torque converter
Optional parts:
4 in 1 bucket/ Soonsan and Chinese brand hydraulic hammer/ clamping device.
Machine model: XT870H
Main parameters:
Digger capacity: 0.3m3
Bucket capacity: 1m3

Main configuration
* Equipped with Weichai engine
* 4*2 or 4*4 driving

Optional parts:
4 in 1 bucket/ Soonsan and Chinese brand hydraulic hammer/ clamping device

Backhoe Loaders
Model	XT870	WZ30-25
Digger Cap.(m³)	0.30	0.30
Bucket Cap.(m³)	1.0	1.0
Overall Weight(t)	8.1	9.5
Engine Model	Deutz TD226B-4IG2 Cummins 4BT3.9-C110 (optional)	YC4B90-T10 CumminsQSB4.5(optional)
Engine Power(Kw)	74	70/82
Driving Deivice	4*2/4*4	4*4
Optional Accessories: Air condition, Hydraulic hammer, Snow plow, Wood clamps, Four-in-one bucket, Fork.
