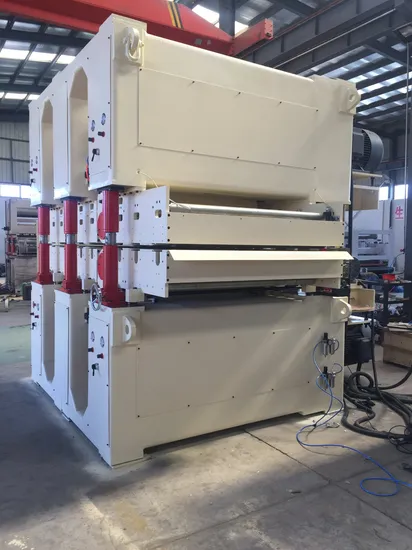

Grinding Sanding Machine
| US$70,000.00-75,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MM5813R-R
Variable Speed
Variable Speed
Certification
CE, ISO
Customized
Customized
Condition
New
Color
White Wide Belt Sanding
Usage
Wide Belt Sanding Machine
Unit
Double Side Wide Belt Sanding
Power
240kw
Sanding Paper Size
1350*2800mm
Transport Package
Plastic Bags
Specification
3420*3520*3213mm
Trademark
HZH
Origin
China
Production Capacity
2 Sets/Month
Product Description
| Model | MM5813R-RP | MM5813R-R | MM5813R-P |
| Sanding units | 4 | 4 | 4 |
| Working width | ≤1300mm | ≤1300mm | ≤1300mm |
| Working thickness | ≤120mm | ≤120mm | ≤120mm |
| Working length | ≥900mm | ≥900mm | ≥900mm |
| Working precision | ±0.08mm | ±0.08mm | ±0.08mm |
| Sandpaper size | 1350*2800mm | 1350*2800mm | 1350*2800mm |
| Speed of sandpaper | 25m/s | 25m/s | 25m/s |
| Feeding speed | 6-30m/min | 6-30m/min | 6-30m/min |
| Front unit Roller diameter | Φ320mm | Φ320mm | Φ320mm |
| Rear unit Roller diameter | Φ240mm | Φ320mm | --- |
| front unit motor power | 75Kw*2 | 75Kw*2 | 75Kw*2 |
| rear unit motor power | 45Kw*2 | 55Kw*2 | 37Kw*2 |
| Feeding motor power | 15kw | 15kw | 15kw |
| Lifting motor power | 5.5kw | 5.5kw | 5.5kw |
| Brush roller motor | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 |
| Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Volume of dust-collecting | 56000m³/h | 56000m³/h | 56000m³/h |
| Speed of dust-collector | ≥25m/s | ≥25m/s | ≥25m/s |
| Working production line height | 1520mm | 1520mm | 1520mm |
| Weight | 26T | 25T | 25T |
| Dimension | 3420*3520*3213mm | 3420x3520x3213mm | 3420*3520*3213mm |
