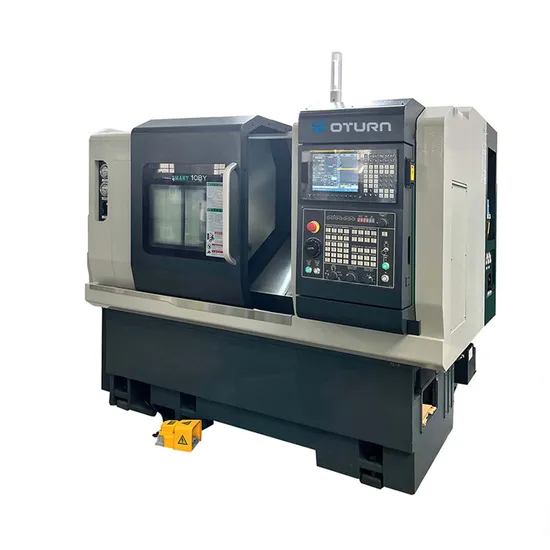

CNC Lathe Slant Bed Metal Lathe 2 Axis CNC Machine Slant-Bed Turning Center Oturncnc Ty108

Product Description

Product Description
The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting.
stability. High-strength HT300 cast iron one-piece solid structure lathe, using finite element analysis, the overall machine
It has excellent rigidity and stability, and can maintain long-term reliable accuracy, improve processing stability and tool life, and eliminate stress.
In addition to improving precision and stability, the high-strength roller linear rail design structure and the transmission system adopts screw pre-tension design to improve
Reflecting rigid performance, the simple and elegant appearance is in line with the trend.
Main features of this machine tool:
1. Adopting a 30° inclined layout and an integrated structure of the bed base, which greatly improves the bending and torsional rigidity of the machine tool during operation. The high rigidity and high stability of the integrated bed base provide high precision for the entire machine. A strong guarantee.
2. Adopt direct drive synchronous spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, adopt a rear-mounted rotor, which makes installation and maintenance faster, the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
3. High rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
4. The machine tool is equipped with roller linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to ensure thermal stability. The amount of displacement is minimized, greatly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
5. Programmable hydraulic tailstock and high rigidity integral tailstock can eliminate vibration and have good stability. Programmable or manual button control, convenient, fast and reliable.
6. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
7. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various functions can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Name	Unit	TY108Y
Max. turning diameter on the bed	mm	Φ600
Max. processing diameter	mm	Φ360
Max. processing diameter on the tool holder	mm	Φ220
Max. processing length	mm	350
Distance Between Centers	mm	380
Spindle nose	type	A2-6
Maximum speed of spindle	rpm	4500
Spindle bore	mm	Φ65
Oil cylinder/chuck	lnch	8″
Bar diameter	mm	Φ52
Direct drive motor spindle power	kw	11/15
X/Z travel	mm	220/380
X/Z linear guide specification	spes	35 roller
X/Z motor power	kw	1.8KW
X/Z Positioning accuracy	mm	±0.005
X/Z Repeat positioning accuracy	mm	±0.003
X/Z rapid traverse	m/min	30/30
Opposite side of cutter/Tool position	mm/pcs	360/10T12T
Outer diameter tool holder specifications	mm	25X25
Inner diameter tool holder specification	mm	Ф40
Adjacent tool change time	sec	0.15
Servo turret Positioning accuracy	/	±2"
Servo turret repeat positioning accuracy	/	±1"
Programmable hydraulic tailstock	/	Programmable
Maximum travel of tailstock	mm	360
Tailstock sleeve taper hole	type	Mohs 5#
Tailstock sleeve diameter	mm	Ф100
Sleeve stroke	mm	100
Machine size(length*width*height)	mm	Appro.2300x1800x1700
Machine weight	kg	Appro.3700kg
Cutting fluid tank volume	L	89L
Cutting water pump	kw	0.75kw
