Cm Masterbatch Automatic Container Mixing Machine
| US$10,000.00-80,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CM
Application Area
Chemical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Spiral
Warranty
12 Months
Working
High Speed Mixer
Automatic Grade
Automatic
Container Volume
50L, 150L, 300L, 600L, 1000L, 1500L, 2000L
Control
PLC
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
The Average Mixing Time
3-6 Min
Mixer Type
Powder Mixer
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Fumigation Wooden Box
Specification
CE, ISO9001: 2008, SGS
Trademark
DEGOLD
Origin
Chongqing, China.
HS Code
8474390000
Production Capacity
10 Sets Per Month
Product Description

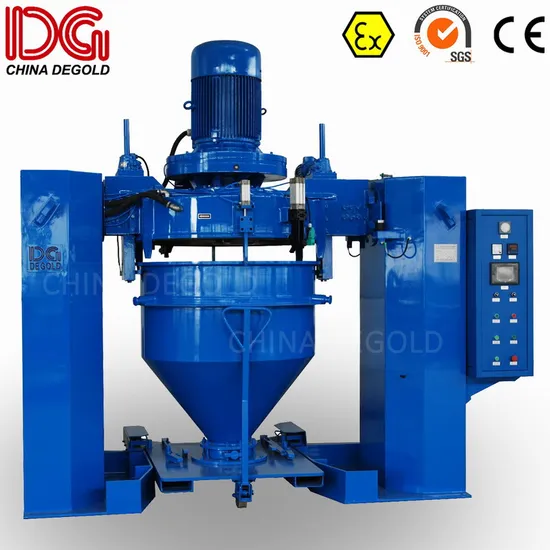

DEGOLD Automatic Container Coating Dry Powder MixerIntroduction:
The DEGOLD CM series container mixer is widely applied in various powder and particle materials industries. With geometric shaped "Z" blade, any desired mixing result can be dependably obtained. The average mixing time is 3-6 min. Operator can add additional materials into mixer by outlet valve.
The container mixer consists of a mobile container and the actual mixer. Here, the container performs several functions from charging to emptying, because it serves as a transport container before and after mixing, as a mixing container during mixing, and as a storage container for subsequent further processing.
Application:
| Powder coating | Master batch (PE, PP, PA, PVC, PS, ABS, TPE, EPS...) | Dye concentrates |
| Brake linings | Additives (e.g. TiO2, CaCo3, Zn, MgO...) | Silic acid with liquids |
| Leather fibers | Toner (premixtures and finished mixtures) | Construction materials |
| Food | PVC (hard/soft) preparation (without cooling) | Cosmetics |
| PTFE | Pencil and colored pencil leads | Metal compounds (MIM) |
| | CM50 | CM150 CM150-D | CM300 CM300-D | CM600 CM600-D | CM1000 CM1000-D |
| Total volume: | 50L | 150L | 300L | 600L | 1000L |
| Effective volume: | 40L | 120L | 240L | 480L | 800L |
| Mixing motor power: | 4kW | 11kW | 11kW | 22kW | 30kW |
| Blades rotary speeds | 211r/min | 965r/min | 126/730r/min | 90/740r/min | 90/740r/min |
| Rotary motor power: | 0.37kW | 0.37kW | 0.75kW | 1.5kW | 2.2kW |
| Lifting motor power: | -- | -- | 2×0.55kW | 2×0.55kW | 2×0.55kW |
| Compressed air: | 0.6Mpa, 1/4" interface port | ||||
| Working voltage | 380V 50Hz (it can be customized) | ||||
| Controlling voltage: | 24V | ||||
| Container outlet butterfly vavle diameter: | 100 | 150 | 200 | 250 | 250 |
| Dimension Length L L1 Width W W1 W2 W3 Height H H1 H2 H3 | --mm --mm --mm --mm --mm --mm --mm --mm --mm --mm | 2000mm 1500mm 950mm 640mm 925mm 800mm 1800mm 2100mm 1175mm 1300mm | 2200mm 1900mm 1010mm 915mm 1015mm 900mm 2250mm 2355mm 1350mm 1550mm | 2700mm 2400mm 1100mm 1070mm 1200mm 900mm 2550mm 2675mm 1500mm 1700mm | 3290mm 2890mm 1550mm 1266mm 1573mm 1325mm 3056mm 3477mm 1900mm 2130mm |
Mark Introduction:
1) "CM"-Degold container mixer
2) "-D"-two mix blades, "no mark"-one mixing blade
3) "300"-container volume
Note: CM300-D, means degold container mixer with 300L container and two mix blades.
Mixing container
mixing position
different mixing blades
