Manual Powder Coating System Painting Machine Electrostatic Spray Line

Product Description

Product Description
Manual Powder Coating System Painting Machine Electrostatic Spray Line

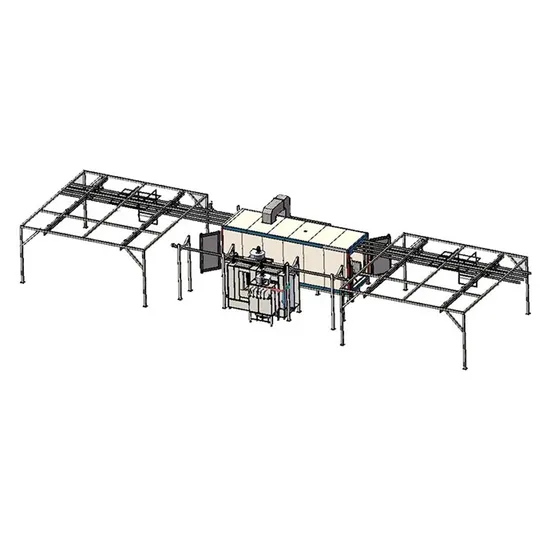

This manual batch powder coating line consisting of a pass-through spray booth, a pass-through oven and a conveyor system. It's more suitable for long and flat workpieces such as aluminum proflie. When the powder coating work is completed, there is no need to load and unload the workpiece, and only need to manually pull the sprayed workpiece into the oven through the overhead conveyor.
Product Parameters

Powder coating line type	Manually
Powder coating booth type	Tunnel spray booth with filter powder recovery system
Powder coating oven	Gas/LPG/Diesel/Electric oven
Conveyor	Overhead tracks

Detail Features
COLO-191S Powder Coating Spray Gun COLO-191S manual powder coating gun is developed for easy and efficient job, suits for both beginners and specialists. Based on COLO advanced technology, especially complex parts can be perfectly coated with this model.

Configurations and Features

1. Applies latest technology allows precise setting electric and pneumatic parameters. The flexible control helps operators find the optimal data for each part, each powder.

2.There are 3 pre-set application programs stand for flat parts, profiles and re-coating, as well as 20 personalized programs.

3. 100kv manual spray guns delivers high transfer efficiency that saves powders.

4. 60lbs fluidizing powder hopper allows big continuous production, which is welled sealed to avoids powder damp and contaminated.

5. Flexible trolley with wheels can be moved everywhere.

COLO Pass Thru Powder Spray Booth This pass thru powder coating booth has 2 working station allows parts recieving coating from both side, parts enter the booth from one entrance and exit from the other through conveyors, continuous coating increases efficiency and ensures application quality.

Configurations & Features

1. The recovery module combines a group high-precision filters made of 100% polyester that maximize separating efficiency.

2. Pulse jet device provides interval filters cleaning, effectively eliminates powder accumulation and prolongs filters' useful life.
3. Full parameters and functions can be handled on the PLC panel, such turning on / off fan, setting pulse-jetting time and interval, light on/off, emergency stop etc.

4. A collection hopper beneath the filter stage ensure the collected overspray powders are clean, and can be easily taken away for recycling.
5. Simple installation - only electrical and air connections are required to start production.
Specifications

Model	COLO-S-3212
Operating Dimensions	Width620 * Depth2920 * Heght1500mm
Overall dimensions	Width1200 * Depth3000 * Heght2033mm
Weight	500kg
Power Supply	220V/380V, 3Phase, 50-60HZ
Fan Power	4kw
Filter Count	6 pcs, Quick-release Type
Filter Material	Polyester
Filter Cleaning	Pneumatic

Track Powder Coating Oven This powder coating oven installed with overhead track system is designed to carry heavy materials into the oven for continuous production, can be heated by electric, gas or diesel as required. Our powder coating ovens features environmental friendly, reducing operating cost and curing more parts everyday.
Configurations & Features

1. PLC system provides a precise and reliable heating process with easy setting of temperature and time.

2. Itatly Riello burner fully burns fuels, quickly reach to required temperature saving your production time everyday.

3. Circulation fans causes uniform temperature in the entire inner space that results in quality cured finishes.

4. 100 mm thickness rockwool board inserted between galvanized steel wall and durable steel skin always keeps the chamber a consistent high temperature with minimum heat loss.

5. It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense.
Specifications

Model	COLO-7021
Worksize Dimensions	Width1800 * Height2100 * Depth7000 mm
Overall Dimensions	Width2000 * Height2400 * Depth7200 mm
Power Supply	LPG / Gas / Diesel
Voltage/Frequency	380V/220V (50-60Hz)
Warm-up Time	15-30 min. (180° C)
Temperature Stability	< ± 3.0-6°C
Temperature	Max. 250° C
Transport System	Two trolleys
Burner	Italy Riello, 20,0000cal
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Ventilation Performance	8288-16576m3/h
Motor Power	5.5kW
Warranty	12 months

Recommend products
Different type of powder coating line solution. We have more then 10 years professional engineer that can design a best line solution based or according to your supplied information.
