XCMG Official Used Aerial Platform Lifting Equipment Gtbz14jd 14m Cherry Picker Small Scissor Lifts

XCMG Official Used Aerial Platform Lifting Equipment Gtbz14jd 14m Cherry Picker Small Scissor Lifts

US$10,000.00-1,000,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GTBZ14JD
Carrying Capacity
Special Weight Level
Moves
Vehicular
Driven Type
Rack&Pinion
Running Mode
Stationary
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Transport Package
Comply with Export Packaging Requirements
Specification
6420*1750*2000mm
Trademark
XCMG
Origin
Jiangsu
Production Capacity
1000/Year

Product Description

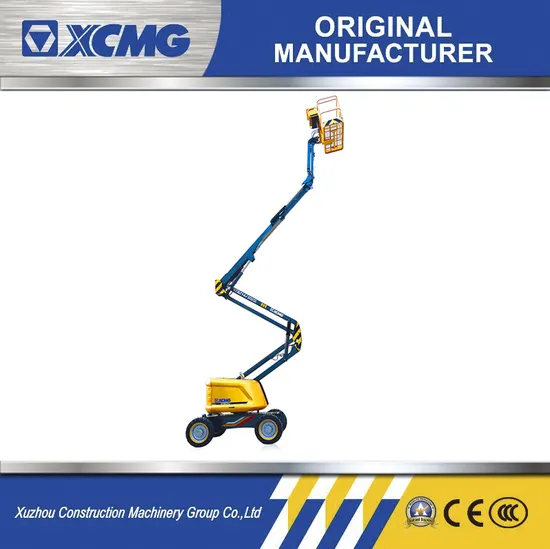

XCMG Official Used Aerial Platform Lifting Equipment GTBZ14JD 14m Cherry Picker Small Scissor Lifts. 14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.
(1) Flexibility and efficiency
"Σ-type"double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range; Narrow-type rotary table with compact structure canachieve"zero tail wagging"and improve operation efficiency
(2) Super strong site adaptability
Cross-country type chassis,four-wheel drive system, pouring-type cross-country wide tyre,full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.
(3) Advanced performance, safety andreliability
Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing,safety speed limit, flexibility start-stop technology, etc. are provided.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters
Description Unit Parameter value
Overall length mm 6420
Overall width mm 1750
Overall Height mm 2000
Overall dimension of work platform mm 1400×770×1150
Maximum speed km/h 5.2
Max. grade ability % ≥30
Minimum outside turning radius m ≤3.2
Ground clearance (center) m 0.21
Wheel base m 2
Total mass kg 6500
Rated working height m 15.5
Max. platform height m 13.8
Max. working radius m 8
Maximum span clearance height m 7.03
Elevating range of No. 1 arm ° 0-60
Elevating range of No. 2 arm ° -83
Elevating angle of crank arm ° -140
Platform swing angle ° 180
Slewing angle 360° discontinuous slewing
Gyration radius of turntable m 0.875
Maximum mass kg 230
Max. tail swing m 0
Control system 12V DC proportional control
Tire 250-15 solid tire, 240/55 D17.5 optional, traceless tire can be selected
Power source 420 Ah/48 V DC
Power unit 4 kw/48 V DC
Auxiliary power unit 2.2 kw/24 V DC
Walking motor 3.3 kw/32 V AC
