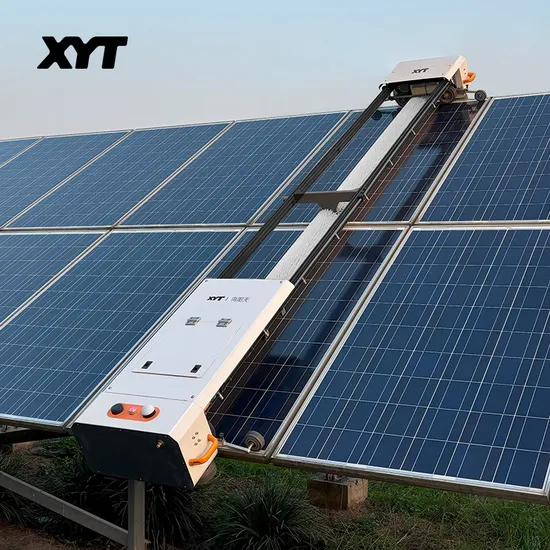

Solar Panel Cleaning Robot Remote Machine Commercial Use with High Climbing Angle 45 Degrees X6

Product Description

Join us and become a national agent specification

Product Parameters Our Advantages
One X6 is suitable for all PV sizes X6 innovative patented design, using a three-stage splicing structure (can be split into upper section, middle section,lower section), optional/replacement of different lengths ofmiddle section kits, suitable for different sizes of photovoltaic panels, greatly reducing the procurement cost of the cleaning machine;It is easy to replace and can be completed quickly in 20 minutes.
Remote control correction of the fuselage Achieve a 98% self-approval rate When the adjacent photovoltaic panels are misaligned and the machine cannot travel when it is deflected, the remote control can actively correct the attitude and pass the dislocation obstacle within 10mm, which greatly achieves a pass rate of up to 98% compared with ordinary products.
Lightweight splicing design for more flexible handling X6 adopts lightweight design, three stage split splicing structure,the weight of the whole machine is about 40kg (e.g., 1650 single row), the upper end of the robot and the bottom are preset with notches, one person can use the telescopic rod to insert the jacking,and the two people can place it on the photovoltaic module, and realize the flexible use of multiple arrays, multiple terrains and multiple sites through manual handling, so as to maximize the value of the product. Five protections make the product more reliable The product is a self-developed embedded software and hardware system, which realizes lP65 waterproof protection,motor overload protection, motor slow start protection, lithium battery overload protection, lithium battery short circuit poweroff protection, and stable operation in harsh environments making the product more reliable.
Travel at low speed to clean heavy dirt High-speed travel improves cleaning efficiency The X6 realizes the remote control adjustment of three levels of travel speed, with a maximum of 15m/min, which can be adjusted to 10m/min or 5m/min, and can travel at low speed for heavily polluted photovoltaic panels, such as guano, to achieve deepcleaning; Light dust can travel at high speeds, improving cleaning efficiency.
Cross the bridge across a large spacing bracket Cleans faster When the spacing of adjacent photovoltaic arrays is large and the array is relatively neat, the product is equipped with two sets of retractable bridge brackets, which are respectively built at the top and bottom of the array spacing to assist in crossing the bridge, which does not require frequent handling, and the cleaning efficiency is greatly improved;The default standard configuration can exceed the maximum spacing of 50cm, and the larger width can be customized;
Active Drop Arrest System is safer
The X6 robot is equipped with 4 high-precision sensors at the upper and lower ends,which will automatically stop when traveling left/right to the blank area on the edge of the photovoltaic panel,and can operate the remote control to driveaway in the opposite direction to avoid falling.
Product function points Introduction to the remote control
1=Left adjust 2=Right adjustment 3= Run to the left 4=Run to the right 5=time out 6=Running speed

Warranty policy 7 days no reason to return or exchange
7 days of broken free replacement
30-day emergency reissue (no need to wait for the return,send you a new one first)
1 year free warranty (the specific details are based on the warranty terms of the manual)
5-year warranty for core components, quality problems are only replaced and not repaired (except for the fuselage shell, nonhuman subject to the actual situation)
