Jg Brand New High-Performance Wheeled Excavators for Construction Engineering Equipment
Basic Info.
Model NO.
JG150
Type
Customized
Usage
Special Excavator, Mining Excavator, GM Excavator
Bucket
Customized
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
MOQ
1set
After Sales Service Support
Remote Technical Support
Spare Parts
Bucket,Drill, Hammer, Various Kinds of Clamps
Feature
Experienced Manufacturers
Color
Customer Requirements
Transport Package
Nude Packing
Specification
7500*2460*2920mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000sets/Year
Packaging & Delivery
Package Size
760.00cm * 300.00cm * 320.00cm
Package Gross Weight
15500.000kg
Product Description
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality.We have rigorous production procedures, and each production process is carried out under strict quality inspection.
Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat,
clean and safe working environment.

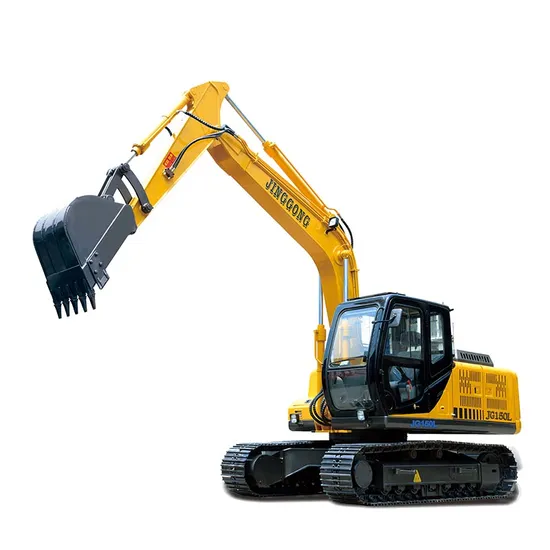

JG150 excavator is installed with 93KW turbocharged engine.
It has a unique 360° rotating stall that is reliable and durable.
The equipped bulldozer greatly improves the stability and stability of the working state of the whole machine.
| SPECIFICATIONS OF JG150L CRAWLER EXCAVATOR | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4800mm | |||||||||
| Maximum Digging Force | 90KN | |||||||||
| Maximum Digging Height | 7180mm | |||||||||
| Maximum Dumping Height | 5080mm | |||||||||
| Back-end radius of gyration | 2300mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 7500*2460*2920mm | ||||||||
| Machine Height | 2730mm | |||||||||
| Wheel base | 2850mm | |||||||||
| Track Gauge | 1960mm | |||||||||
| Width Of Crawler | 500mm | |||||||||
| Width Of Platform | 2460mm | |||||||||
| Ground clearance of counterweight | 900mm | |||||||||
| Min ground clearance | 420mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 13500kg | |||||||||
| Engine model | LRM3Z-22/4BTAA3.9 | |||||||||
| Rated Power | 93KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 26Mpa | |||||||||
| Hydraulic system flow | 270L/min | |||||||||
| Metering gear pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| (High speed/low speed) | 5/2.9km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Volume Of Bucket | 0.5m3 | |||||||||
| Revolution Overdrive Pressure | 25Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥8L/h | |||||||||
| Capacity Of The Fuel Tank | 226L | |||||||||
| Hydraulic Tank Capacity | 227L | |||||||||
Our company mainly produces wheeld excavator, crawler excavator, grapple excavator, material handler,forklift,
railway machine, sugarcane combine harvester.
