Simple Surface Tool Grinder Surface Grinding Machine Mj7115
| US$1,200.00-1,350.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MJ7115
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Model
Mj7115
Longitudinal Stroke
340mm
Lateral Stroke
170mm
Gringding Height
210mm
Motor Power
550W
Transport Package
Wooden Case
Specification
ISO9001: 2000 TUV CE
Trademark
WHITE EAGLE
Origin
Made in China
HS Code
8460190000
Production Capacity
5000sets/Month
Product Description
FEATURES:1)This small-type grinder is designed to grind various horizontal and vertical surfaces of the workpieces by the periphery and end faces of the grinding wheel respectively.
2) It can also grind various contoured workpieces with shaped wheel or craftsmanship apparatus.
3)With simple structure and easy operation and maintenance, it can be used in small enterprises, repair shops and family
Specification:
| SPECIFICATIONS | Metric | Inch |
| Longitudinal stroke | 340mm | 14 |
| Lateral stroke | 170mm | 7 |
| Grinding height | 210mm | 8 |
| Area of table | 152mm×304mm | 6×12 |
| Width of T-slot | 1-12mm | 1-0.47 |
| Cross feed per graduation | 0.02mm | 0.001 |
| Cross feed per round | 2.54mm | 0.1 |
| Vertical feeds per graduation | 0.025mm | 0.001 |
| Vertical feed per round | 1.25mm | 0.05 |
| Roughness | 1.6μm | |
| Grinding wheel | 180mm×32mm×13mm | |
| Power of motor | 0.55kw | |
| N. W. / G.W.of machine | 210/258kg | |
| N. W. / G.W.of stand | 30/54kg | |
| Overall dimension of machineL×W×H | 930×780×730mm | |
| Case dimension of machineL×W×H | 930×780×1480mm | |
| Case dimension of standL×W×H | 720×550×550mm | |

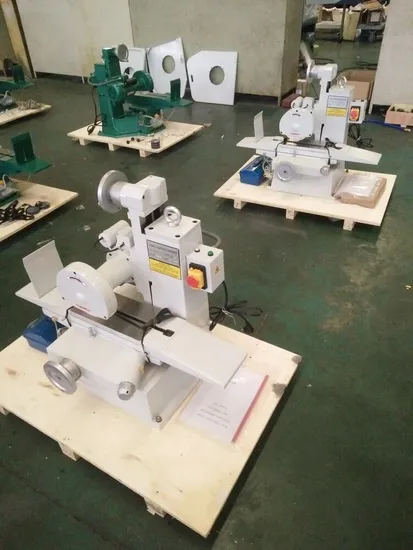

Product display:
