Sg618ah/Sg618ahr High Precision Hydraulic Surface Grinder

Product Description

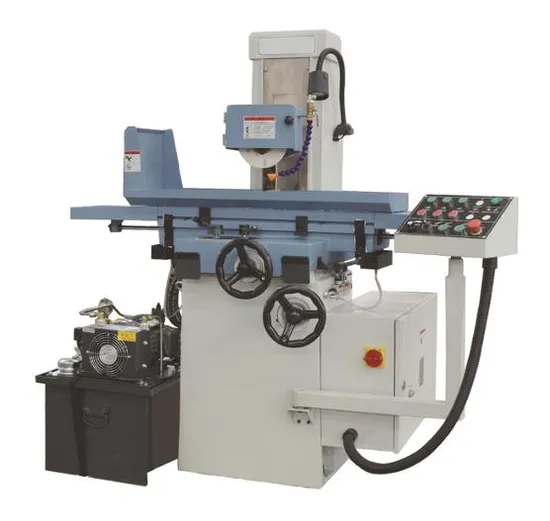

SG618AH/SG618AHR Hydraulic Surface Grinder
The machine is reasonable in structure, good rigidity, beautiful appearance,convenient operation.Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
The main mechanical valve is a special valve grinder, is divided into two parts,the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.
Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electrical magnetic sucker.
Technical Parameters:

SG618	AH	AHR
Vertical	manual	Rapid movement and manual
Cross	Auto intermittent	Auto intermittent
Longitudinal	Hydraulic	Hydraulic

Model No.	SG618AH/AHR
Item No.
Technical Parameters
Max.workpiece to be ground(LxW)	460x180 mm
Maximum travel of table (LxW)	500x190 mm
Magnetic chuck size	400x150 mm
Number of T-Slot	1x12 mm x n
Distance from table surface to spindle center	335 mm
Wheel size (dia x width x bore)	Ø180x13x31.75 mm
Spindle speeds (50Hz)	2800 r/min
Table longitudinal (left and right)speed (stepless)	3-23 m/min
Continuous(variable speed)	150 mm/min
Intermittent (stepless)	0-5 m/time
The handwheel rotates	2.5 mm
Hand wheel each grid	0.02 mm
The handwheel rotates	1.25 mm
Hand wheel each grid	0.01 mm
Spindle motor	1.1 kw
Cooling motor	0.04 kw
Hydraulic motor	1.5 KW
Cross feed motor	0.04 KW
Elevating motor (AHR)	0.25(AHR)
Oil tark capacity	60L
The machined surface of the base of parallelism	300/0.005 mm
Surface roughness	Ra 0.32 μm
Net/Gross weight	0.7T/0.8T
Packing size(LxWxH)	1850X1200X1860 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
