Hot Sales Crankshaft Grinding Machine Mq8260A Mq8260c Mq8260

Product Description

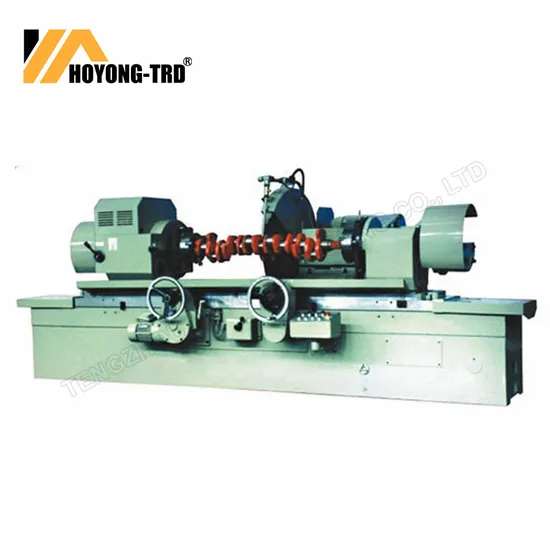

Crankshaft Grinding Machine MQ8260
Specifications
Crankshaft Grinding Machine used in automobile, tractor, diesel engine works and their repair shops to grind the journals and crank pins crankshafts
1, the workpiece with the tip or chuck clamping, pretext, tailstock motor synchronous drive, manual grinding.
2, table longitudinal movement with manual or motorized two kinds of rotation. Motor driven by a motor, for jumping profile or adjustment, only one speed.
3, according to user needs can be equipped with left and right cross chuck, maximum adjustable volume, the vertical direction is 110 mm, lateral 2.5 mm,
the shift indexing simply rotate around the chuck.
4, wheel, bench, cooling pump, oil pump driven by a separate motor.
5, head, tail carriage motor are controlled by the inverter to achieve synchronous operation, reducing the deformation of the workpiece.
6, wheelhead rapid retreat is driven by hydraulic pressure.
7, moving machine table using plastic guide posts with the international advanced technology, the performance is more stable and reliable.
8, the table and the wheel hydraulic, electrical interlocking structure, in terms of adjustment due to operator error or grinding ensures safe operation.

Model		MQ8260x1600
Max. work diameter × Max. length of workpiece		Φ580×1600mm
Capacity	Max. swing over table	580 mm
	Work diameter ground with steady rest	Φ30-100 mm
	Throw of crankshaft	110 mm
	Max. length of workpiece	1600mm
	Max. work length ground in 3 jaw chuck	1500 mm
	M ax. work length ground between centres	1600 mm
	Max. work weight	120 kg
Headstock	Centre heigt	300 mm
	Work speed (rpm/min)	25,50,100
Wheelhead	Max. cross movement	200 mm
	Wheelhead rapid approach & withdrawal	100 mm
	Wheelhead feed per turn of cross feed handwheel	1 mm
	Wheel feed per grad of cross feed handwheel	0.005 mm
Grinding wheel	Wheel spindle speed	760 rpm
	Wheel peripheral speed	25.6 - 35 m/sec
	Wheel size	Φ900x32xΦ305 mm
Table	The maximum amount of longitudinal movement of the table	1600 mm
	Table traverse per turn of handwheel fine	1.68 mm
	Table swivel (taper 18/100)	5°
	Table swivel per grad of scale (taper 1:50)	10'
Overall capacity of motor		10.22 kw
Overall capacity of grinding wheel motor		7.5 kw
Overall dimension (LxWxH) (mm)		4000×2100×1630
Weight		6710 kg
Working Accuracy	Ovality (new standard	0.005
	Cylindricity	0.01
	Roughness Ra	0.21
