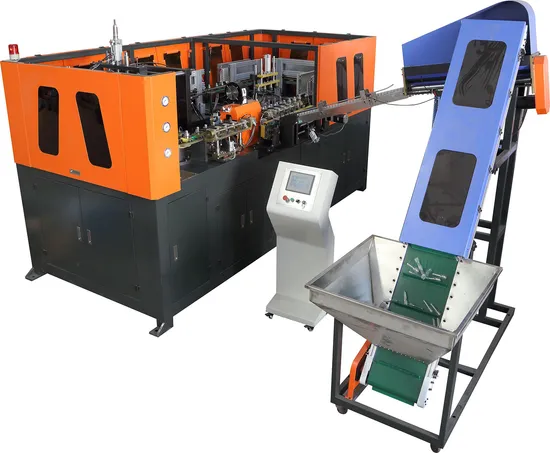

Pet Blowing Machines for Drinking Water (BM-A4)
| US$25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BM-A4
Raw Material
PET
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
2 Year
Size
250ml-200ml
Speed
4000bph@500ml
Transport Package
Wooden Case
Specification
CE
Trademark
MARS
Origin
Jiangsu, China (Mainland)
HS Code
8477309000
Production Capacity
100PCS /Year
Product Description
Pet Blowing Machines For Drinking Water1. Size: 250ml-200ml
2. Speed: 4000bph@500ml
3. CE, ISO
1. Size: 250ml-200ml
2. Speed: 1500bph@500ml
3. CE, ISO
Newly designed and reformed on previous experiences of our manufacture.
PET bottle blowing machinery for water beverage drink
Specification:
BM-A2 automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from200-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
PET bottle blowing machinery for water beverage drink
A. Working power of the controller: 100-240VAC
B. Working power of the magnetism valve of the bottle blowing machine: 220VAC or 24VDC
Technical parameter
| TYPE | ITEM | UNIT | BM-A4 technical data |
| Container | Product material | / | PET |
| Container volume | L | 0.05-2.0 | |
| Theoretic output | Psc/hr | 4200 | |
| Preform length | MM | 50-200 | |
| Max height of bottle | MM | 320 | |
| Molding | Preform inner diameter | mm | 15-60 |
| Bottle diameter | mm | 35-110 | |
| Max mold plate dimension (L × W) | mm | 380 × 460 | |
| Max mold thickness | mm | 200 | |
| Air compressor | High pressure compressor | M3/Mpa | 1.2/30 × 3set |
| Locking force | KN | 170 | |
| Mold opening stroke (adjustable) | mm | 200 | |
| Low pressure compressor | M3/Mpa | 2.0/10 × 1sets | |
| Air dryer | M3/Mpa | 2.0/30 × 1sets | |
| Main machine electricity | Power | KW | 30 |
| Voltage / frequency | V/Hz | 380/50hz | |
| Machine size and weight | Main machine (L × W × H) | M | 4.2 × 1.8 × 2.0 |
| Main machine weight | T | 4.2 | |
| Conveyor (L × W × H) | M | 1.4 × 1.1 × 1.85 | |
| Conveyor weight | T | 0. | |
| High pressure compressor (L × W × H) | Kg | 1.90 × 0.75 × 1.50 × 3sets | |
| Low pressure compressor (L × W × H) | M | 185 × 0.75 × 1.50 | |
| High pressure air reservoir tank (D × H) | M | 0.70 × .25/3.0 | |
| Air dryer (L × W × H) | M | 0.85 × 0.50 × 0.95 | |
| Air filters | Kg | 10 × 5pc | |
| Cooling water: cooling water recycling system can be used with its power of 8~10 liter per minute and 2~3 kilos water pressure | |||
| Total power: 50KW | |||
| Safety | Auto emergency alarm | Safety inter-locking device | |
