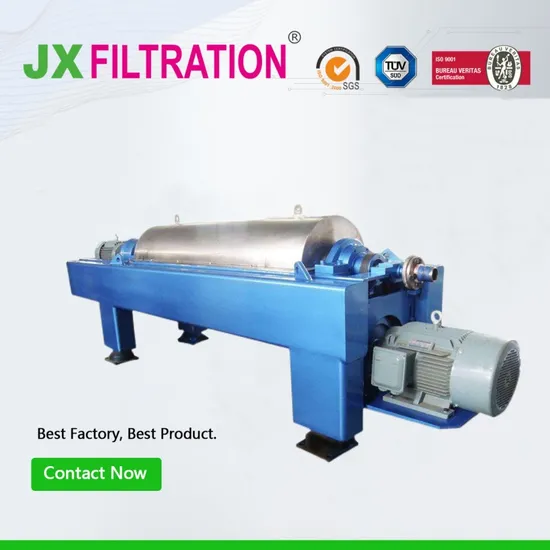

Industrial Horizontal Decanter Centrifuge for Solid-Liquid Separation Solutions Sludge Dewatering Centrifuge

Product Description

Product Description Product Introduction
Horizontal decanter centrifuge is the mechanical equipment for continuous separation of suspension containing density difference by centrifugal
setting principle. JX Filtration centrifuge can clarify, dehydrate, or separatesuspensions containing solid particles of 0.002-3mm in diameter and 0.5-40% in concentration range. According to material features, it can be divided into LW two-phase horizontal decanter centrifuge and LWS three-phase horizontal decanter centrifuge. It can separate different materials under different working conditions and is widely used in pharmaceutical, food,chemical, environmental protection and other industries.
Working principle
Horizontal decanter centrifuge is mainly composed of a conical drum, screw pusher, differential system, bearing base, frame, housing, main and auxiliary motor and electrical system. The main motor drive the drum and the second motor drives the planetary gear differential, which generates the drum and spiral differential. Under the strong centrifugal force produced by the high-speed rotation, the centrifuge can be separated continuously.
The drum and the screw pusher rotate at a certain differential speed and high speed. The material continuously enters the feeding tube's spiral feeding chamber and then accelerates and enters the drum. Under the centrifugal force field, the heavier solid phase deposits on the drum wall to form the sediment layer. The solid deposits are continuously pushed to the drum's cone end by the screw pusher and discharged from the slag discharge outlet after drying in the drying zone. The lighter liquid phase forms an inner liquid ring, which continuously overflows the drum from the overflow outlet at the drum's large end and discharges out of the machine through the outlet.
Two types of horizontal centrifuge

Detailed Photos
Product Parameters
Certifications
Company Profile JXFILTRATION® JX Filtration (China) Co., Ltd is a professional manufacturer of Wedge Wire Screen (Wedge Wire Screening), Automatic Backwash Filter, Rotary Drum Screen, Bag Filter Housing, Volute Dewatering Press. With highly mature production lines, we can provide high-quality and inexpensive products in large quantities.Because of the difference in raw material price, factory wages and other considerations, we have set up three factories in major cities of China to ensure our product quality and price advantage.
Our Belief: Your trust is priceless!
Our Advantages Professional Services FAQ Question 1: Are you manufacturer?
Yes, we are the manufacturer since year 2014.
Question 2: Can you provide OEM service?
Yes, we have more than 10 years of OEM experience and provide this service. Question 3: Can you provide sample? Free or chargeable? Yes, we can provide free sample for filter elements, all filter housings are chargeable.
Question 4: Does the product support customization?
Products can be customized base on our current mould.
Question 5: What is the payment terms?
50% advance,balance 50% before shipment(FOB terms).
