130A 250A Energy Storage Battery DC Power Cable Connector IP67 Power Plug

Product Description

Product Description

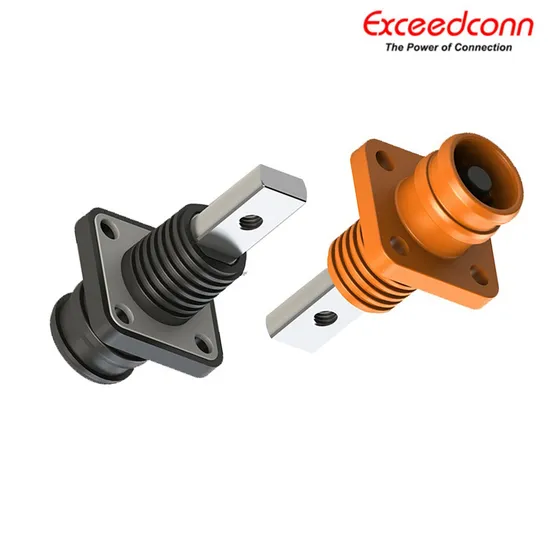

130A 250A Energy Storage Battery DC Power Cable Connector IP67 Waterproof Power Plug Socket for battery packnector for battery pack

Product name	130A Energy storage Connectors
Rated voltage	TUV 1500V, UL 1000V
Rated impulse voltage	3000V
Rated current	100A (16mm², 5AWG/6AWG) 130A (25mm², 3AWG/4AWG)
Contact resistance	≤0.5mΩ
Insulation resistance	≥500MΩ
Applicable wire size	7.8mm~8.6mm (16mm², 5AWG/6AWG) 9.8mm~10.5mm (25mm², 3AWG/4AWG)
Protection grade	IP67
Environment temperature	-40ºC~+125ºC
Conductor material	Ag plated copper alloy
Plastic material	PBT+30%GF
Certification	TUV, UL
Model number	For wire 16mm², 5AWG/6AWG: P10-2201-102 (positive, cable end) P10-1101-108 (positive, panel mount) P10-2201-103 (negative, cable end) P10-1101-109 (negative, panel mount)
	For wire 25mm², 3AWG/4AWG: P10-2201-104 (positive, cable end) P10-1101-108 (positive, panel mount) P10-2201-105 (negative, cable end) P10-1101-109 (negative, panel mount)

Company Profile
Exceedconn is committed to provide lighting system connection solutions, products R&D, manufacturing and OEM service. The products are widely used in the fields of city lighting, landscape, solar energy and industrial control etc. Main customers are industry leading enterprises.With many years development, Exceedconn owns a professional and strong technical team. We can provide individualized connection solutions for different customer in different fields. Company has more than 50 patents in connection solutions till now.Adhering to the "rigorous, responsibility, cooperation" business philosophy, Exceedconn provides customer high quality products and service.Exceedconn---Your strong supports on connection solutions.
Certifications
Packaging & Shipping
FAQ
Q: Can you offer samples?
A: We can supply the free sample with freight collect.

Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.

Q: What's your after-sales service?
A: We provide you with technical support and can help you to solve your customers' problem.

Q: Do you have a catalogue?
A: Yes, we have product catalogue.Please contact us online or send an Email for catalogue.
