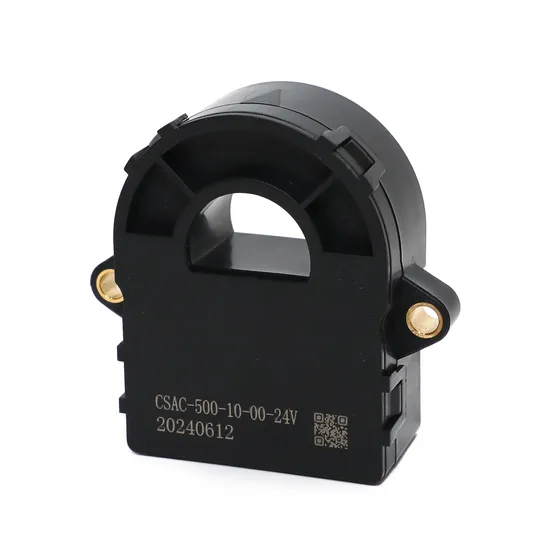

Current Sensor Csac-500 The Best-in-Class Current Monitoring Solution for High Voltage Battery Pack

Product Description

Product Description
This series of closed-loop Hall current sensors, with an innovative design, can achieve high precision bidirectional current measurement at +5V power supply, while introducing chopper technology to greatly reduce zero point and temperature drift, to achieve high precision current measurement, suitable for battery management systems.
Main Benifits:

High global accuracy (<0.5%) and low offset (<50mA)* Measurement of bi-directional current up to 1500A Over Current Detection Programmable CAN features (CAN ID, Baudrate, Frame emission period) Output signal: high speed CAN (500 kbps) Product Parameters

Parameter	Symbol	Unit	Specification
			CSAC-100-A1	CSAC-200-A1	CSAC-300-A1
Maximum power supply voltage	Uc max	V	-0.5~7
Storage temperature	TAST	ºC	-40~85
ESD	ESD	KV	8
Withstand voltage (AC)	Ud	KV	2.5
Creep age distance	dcp	mm	7.9
Electrical clearance	dci	mm	9.2
Relative electric leakage mark rise index	CTI

Dimension
Structure and Installation
Shell material: PA66-GF30 Core: soft magnetic alloy
Terminal: CuSn6 Tin Weight:
IP level: IP41
Connector: TYCO P/N 1473672-1 Installation torque: M4 2.2Nm±5%
Application
