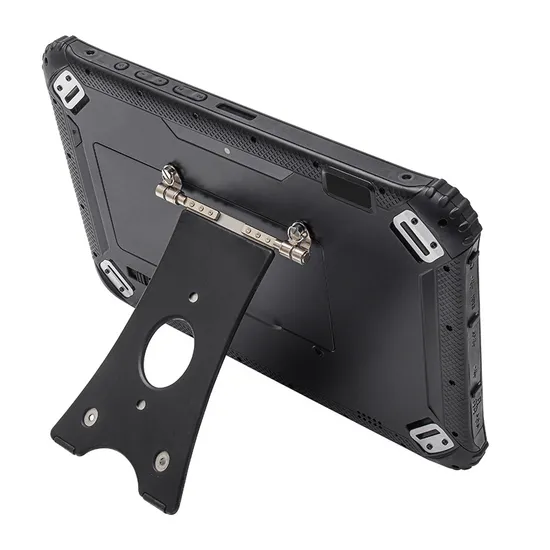

12.2 Inch Intel Quad Core Rugged Windows Tablet PC IP65 Waterproof RJ45
Basic Info.
Model NO.
WinPad W122J
Built-In Microphone
Built-In Microphone
Card Reader
Card Reader
Charging Interface
DC
Cpu Core
Quad-Core
Cpu Type
Intel
Display Resolution
1920*1200
Drive Interface
USB 3.0
Durability
Anti-Dust, Drop Resistance, Shockproof, Waterproof
Fingerprint
Without Fingerprint
Front Camera Pixel
5MP
Hard Disk Capacity
≥128G
Memory
8GB
Network Mode
3G, 4G, WiFi
Operating System
Windows
Protection Level
IP65
Rear Camera Pixel
Rear 8.0MP Af with Flashlight
Screen Size
12.2inch
Screen Type
Capacitive Screen
Special Features
Waterproof/Shock Proof/ Dust Proof
Stylus Support
Yes
Warranty Period
1 Year
Webcam
Webcam
Weight
1620g
Processor
Jasper Lake N5100 Quad Core, 2.8GHz
RAM/ROM
8+128GB
WiFi
IEEE 802.11A/B/G/N/AC, Support 2.4G/5.8GHz
Bt
V5.0 (BLE)
Gnss
GPS/Beidou/Glonass
RJ45 Port
*1 (10/100/1000Mbps)
Waterproof
IP65/Mil-Std-810g
Transport Package
Standard Package
Specification
319.6*216*24.3mm
Trademark
WinPad
Origin
China
HS Code
84713010
Production Capacity
100000pieces/Month
Product Description
12.2 inch Intel quad core rugged windows tablet pc ip65 waterproof RJ45
Main features: 1) 12-inch 650nit High-Brightness Touch Screen 2) Intel N5100 Quad Core Processor 3) IP65 Waterproof /1.22 Meters Drop-Proof 4) 8GB DDR+128GB SSD 5) Hot Swap Dual Batteries Design 6) Support GPS/Beidou/GLONASS 7) RS232/485/RJ45/USB Type-A Interfaces 8) NFC/5G NR/2D Scanning Modules Optional Detailed Photos
| BASIC INFO | |
| Model No. | WinPad W122J |
| Operating System | Windows 11 Pro |
| Dimension | 319.6*216*24.3mm |
| Weight | 1620g (include battery) |
| Color | Black |
| Language | Multi-language |
| HARDWARE | |
| Display | 12.2 inch 16:10 Corning Gorilla IPS capacitive screen, 1920*1200px, 650cd/m2 |
| Processor | Intel JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel HD Graphics Gen 11 LP |
| RAM | 8GB RAM |
| ROM | 128GB ROM, support Micro SD card up to 512GB maximally |
| Camera | Double cameras: rear 8.0MP AF with flashlight, front 5.0MP |
| Battery | Removable 7.4V/6300mAh+ built-in 7.4V/1000mAh Li-Polymer battery |
| G-sensor | Support |
| Speaker | Embedded 8Ω/1W waterproof speaker*2 |
| LED Indicator | RGB |
| Key | Power key*1, Volume key+/-*1, Home key*1, P1/P2/F custom key*3 |
| NETWORK & CONNECTIVITY | |
| Network Bands | 2G GSM 900/1800MHz |
| 3G WCDMA 900/2100MHz | |
| 4G FDD-LTE B1/B3/B7/B8/B20/B28A | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi |
| BT | V5.0(BLE), transmission distance: up to 10 meters |
| GNSS | Support GPS/Beidou/GLONASS |
| I/O INTERFACES | |
| TF card slot | *1 |
| SIM slot | *1 |
| Reset Hole | *1 |
| USB Type-A | *3 (USB2.0*1, USB3.0*2) |
| USB Type-C 3.0 | *1 |
| 3.5mm audio jack | *1 |
| DC-IN | *1 |
| Mini HD-MI 1.4a | *1 |
| RJ45 Port | *1 (10/100/1000Mbps) |
| RS232 | *1 |
| RS485 | *1 |
| 12pin Pogo Pin | *1 |
| OPTIONAL FEATURES | |
| NFC | Optional (NXP300) |
| 2D barcode scanning | Optional (Honeywell N3680) |
| 5G Module | Optional |
| RELIABILITY | |
| Waterproof | IP65/MIL-STD-810G |
| Drop-proof | 1.22m drop |
| Temperature range | Operating: '-20 °C to 60 °C, storage: '-30 °C to 70 °C |
| Humidity range | 95% Non-Condensing |
| ACCESSORIES | |
| Power Adaptor (19V/3.42A) | *1 |
| Hand-strap | *1 |
| Charging dock | Optional |
| Back-strap | Optional |
| Keyboard | Optional |
| Desktop Stand | Optional |
| Vehicle Mount | Optional |
| Stylus | Optional |
| BASIC INFO | |
| Model No. | WinPad V10J |
| Operating System | Windows 11 PRO |
| Dimension | 264.5*184.1*23mm |
| Weight | 834g (include battery) |
| Color | Black |
| Language | Multi-language |
| HARDWARE | |
| Display | 10.1 inch 16:10 tempered glass IPS capacitive screen, 1280*800px, 700cd/m2 |
| Processor | Intel JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel HD Graphics Gen 11 LP |
| RAM | 8GB RAM |
| ROM | 128GB ROM (EMMC), support Micro SD card up to 512GB maximally |
| Speaker | Embedded 8Ω/1.5W waterproof speaker |
| LED Indicator | RGB |
| Key | Power key*1, Volume key+/-*1, custom key*4 |
| NETWORK & CONNECTIVITY | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi |
| BT | V5.0 (BLE), transmission distance: up to 10 meters |
| GNSS | Built-in Neo-7 module, support GPS/Beidou/GLONASS |
| I/O INTERFACES | |
| SIM slot | *1 |
| USB Type-A 3.0 | *1 |
| DC-IN | *1 |
| RJ45 Port | *1 (10/100/1000Mbps) |
| RS232 | *1 |
| RS485 | *1 |
| OPTIONAL FEATURES | |
| Battery | Optional (7.4V/1000mAh Li-Polymer battery) |
| 4G Module | Optional |
| NFC | Optional (NXP300) |
| RELIABILITY | |
| Waterproof | IP65 |
| Temperature range | Operating: '-20 °C to 60 °C, storage: '-30 °C to 70 °C |
| Humidity range | 95% Non-Condensing |
| ACCESSORIES | |
| WiFi rod antenna | *1 |
| GPS rod antenna | *1 |
| Power adaptor cable | *1 |
| Power adaptor | Optional |
| Car charger | Optional |
| Wide voltage module | Optional |
| VESA | Optional |
| BASIC INFO | |
| Model No. | WinPad W109 |
| Operating system | Windows 10 home (Win 10 pro, Win 10 IOT optional) |
| Dimension | 277.48*182.74*21.5mm |
| Weight | 1155g |
| Material | PC+TPU |
| Color | Black (can be customized) |
| Language | Multi-language |
| HARDWARE | |
| Display | 10.1 inch Corning Gorilla III IPS capacitive touch screen, 1280*800px, 450nits |
| Processor | Intel Cherry Trail Z8350 quad core, 1.44GHz ~ 1.92GHz; GPU: Intel HD Graphics Gen8 |
| RAM | 4GB RAM |
| ROM | 64GB ROM (32GB/128GB ROM optional), support TF card up to 256GB maximally |
| Camera | Rear camera: 5MP; Front camera: 2MP |
| Battery | Removable 3.8V/8500mAh Li-ion battery |
| Sensor | Gravity sensor |
| Speaker | *2, 1.2W/8Ω |
| Receiver | *1 |
| Mic | *2 |
| Keys | Power key, Volume+/-, P-Key, F-Key |
| Indicator light | *1 |
| NETWORK & CONNECTIVITY | |
| Bands | 2G: GSM 900/1800MHz |
| 3G: WCDMA 850/900/2100MHz | |
| 4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B38/B40/B41 | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8G dual-band WiFi |
| BT | V4.0(BLE), ~10 meter |
| GNSS | Built-in U-blox M7N module, support GPS/BDS |
| I/O INTERFACES | |
| Micro SIM Slot | *1 |
| TF Card slot | *1 |
| USB Type-C 2.0 | *1, Support OTG |
| USB Type-A 2.0 | *1 |
| RJ45 Ethernet Port | *1, 100Mbps |
| RS232 | *1 |
| DC-IN | *1 |
| Mini HD-MI | *1 |
| 3.5mm Audio Jack | *1 |
| Pogo Pin | *1 |
| CONINVERS | RS232/USB/DC5V/CAN BUS optional |
| OPTIONAL FUNCTIONS | |
| NFC | 13.56MHz, Support: 14443A/14443B/15693 |
| UHF RFID | PR9200, Read distance: 1.5m-3m; Read distance 2: 5m-8m |
| ID Card Reader | Support reading 2th Generation ID card |
| Fingerprint | 1: Ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint |
| 1D barcode scanner | Zebra SE655 |
| 2D barcode scanner | Zebra SE2707 |
| Screen | 800nits(1920*1200px),1000nits(1280*800px),Wet hand touch, Glove touch, Active/passive capacitor pen, AG+AF Coating, AR Coating |
| RELIABILITY | |
| Waterproof | IP67 |
| Drop-proof | 1.2M,Cement floor |
| Temperature range | Operating: -20ºC~60ºC Storage: -30ºC~70ºC |
| ACCESSORIES | |
| Charger(5V/3A) | *1 |
| User Manual | *1 |
| Hand strap | Optional |
| Mounted bracket | Optional |
| Standby Battery | Optional |
| Docking | Optional |
| Type-C Cable | Optional |
| OTG Cable | Optional |
