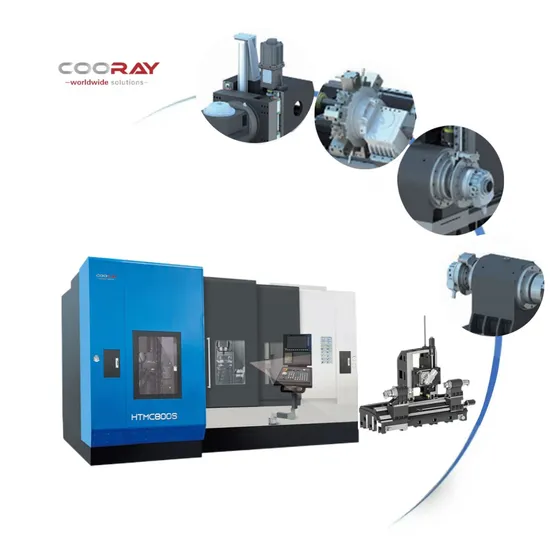

Cooray Cr-Mt 5-Axis Head Turning and Milling Composite Multi-Tasking Machine
| US$300,000.00-500,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CR-MT
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
Key Selling Points
High Productivity
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Transport Package
The Two Sides Negotiate Logistics.
Specification
3600X3400X2900mm
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
360.00cm * 340.00cm * 290.00cm
Package Gross Weight
17000.000kg
Product Description
Product Description| Model | HTM800S | TCK3100SY | TCK63Y-1500 | |TCK600SY | TCK2100LY | TCK56Y-1000 |
| Maximum turning diameter of the bed (mm) | φ600 | φ750 | φ720 | φ600 | φ650 | φ560 |
| Maximum cutting length (mm) | 1200 | 1000 | 1500 | 500 | 500 | 930 |
| Maximum cutting diameter (mm) | φ580 | φ500 | φ480 | φ350 | φ350 | φ300 |
| Form and code of the end of the main (sub) spindle | A2-8(6) | A2-8(6) | A2-8 | A2-6(5) | A2-6 | A2-6 |
| Spindle hole diameter (mm) | φ87/67 | φ85 | φ85 | φ56 | φ65 | φ65 |
| Main (sub) spindle rotational speed range (rpm) | 3000(4000) | 3000(4000) | 3000 | 4500(5000) | 4500 | 4500 |
| X-axis travel (mm) | 720 | 400 | 300 | 280 | 260 | 200 |
| Y-axis travel (mm) | ±125 | ±100 | ±75 | ±50 | ±50 | ±30 |
| Z-axis travel (mm) | 1550 | 1350 | 1450 | 550 | 550 | 950 |
| Main (sub) spindle motor power (kW) | 37(30) | 37(30) | 37 | 30(11) | 30 | 30 |
| X/Y/Z rapid movement (m/min) | 2012/12/12 | 2012/12/16 | 2012/12/16 | |||
| Tool holder type | 12-position power turret | 12-position power turret | 12-position power turret | 12-position power turret | 12-position power turret | 12-position power turret |
| Machine weight (Kg) | 17000 | 10000 | 8000 | 4800 | 4000 | 4200 |
