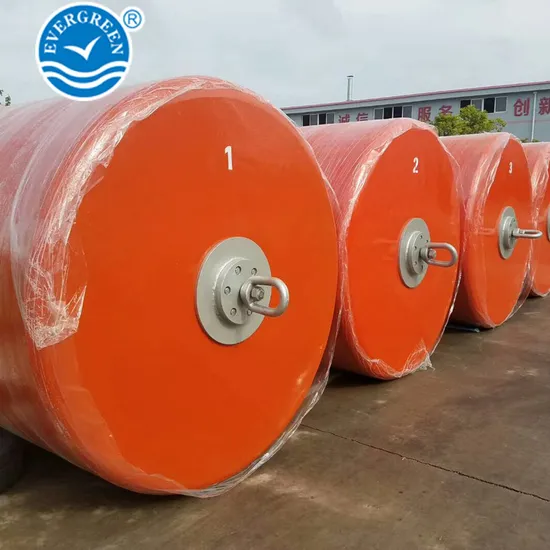

Offshore Marine Mooring Buoy EVA Foam Buoy

Product Description

Floating Mooring EVA Foam Marine Buoys

brand: Evergreen maritime

The buoys sent to UAE, South Africa, Southeast Asia etc.
l Core
The core is manufactured by batching up the resilient closed cell polyethylene or EVA foam and uniformly and continuously thermolaminating each layer together. The method ensures a bond stronger than the foam itself and eliminates the use of adhesives which can break down under long use. Useing of a polyethylene foam core ensure the buoy will not absorb water even if the skin is punctured, increasing the lifespan of the product and reducing maintenance costs. The resilient material makes the buys self fendering with a high impact absorption capacity.

l Skin
The core is encapsulated with a skin of high performance polyurethane elastomer, spray applied. Polyurethane elastomer is selected for the skin because of its high resistance to abrasion, fatigue and ultra violet degradation and is significantly more durable than polyethylene materials used in the construction of rotationally moulded buoys.
l Steelwok and end assembly
Comprising through central steel tube with longitudinal gussets and external load distribution flanges at each end. A swivel assembly, certified 10 tonnes SWL, with bows at each end passes through the central tube.
All the material of swivel assembly are hot dip galvanized. Steelwork to be coal tar epoxy painted.
Subsea Buoyancy
Evergreen can make buoyancy material used for subsea up to 7000m. Product of different opplications buoyancys are manufactured upon our advance subsea buoyancy material. We can make subsurface mooring buoys , cable float, pipeline buoys, ROV buoyancy module , special buoys, and other synmatic foam products.
Our high-performance subsea buoyancy material and synmatic foam have the following performance.

Item	Unit	Value
		500m	1000m	1500m	4500m
Density	g/cm³	≤0.4	≤0.45	≤0.5	≤0.6
Compressive Strength	MPa	≥5	≥10	≥15	≥40
Hydrostatic Pressure	MPa	≥5	≥10	≥15	≥37
Water Absorption	%	≤2(5MPa,24h)	≤2(10MPa,24h)	≤2(15MPa,24h)	≤2(40MPa,24h)

For more details, please contact me , Ms Ada Zheng 008617663929366
