New Products 4 in 1 Cutting Cleaning Welding 1000W 1500W 2000W Hand for Metal Small Handheld Fiber Laser Welding Machine

Product Description

SMART HWE Series
5 in 1 Handheld Fiber Laser Welding Cutting Cleaning Machine
Product Description
I.Laser Welding Machine Advantages:
1. The welding seam is beautiful, uniform, no welding scar, no discoloration, and no need to polish in the later stage. Save labor and working hours and improve efficiency.
2. The welding is firm, and the weld strength reaches or exceeds the base metal itself;
3. One-time welding and forming, basically no deformation, meeting the requirements of high-quality products
4. Fast welding speed, high efficiency, 2-10 times faster than traditional welding, one machine can save at least 2 welders a year.
5. The operation is simple, easy to learn, and quick to learn. It only takes 5 minutes to master, no welder foundation is required, and labor costs are saved.
6. Low cost, power consumption is only one tenth of general argon arc welding or gas shielded welding.
7. Laser welding requires less consumables and has a long life.

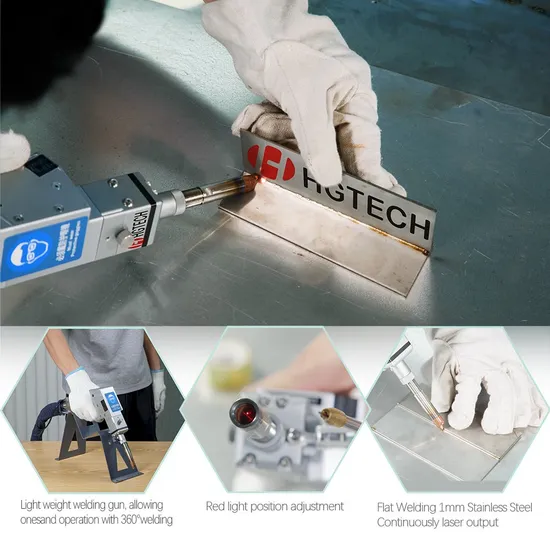

8. Red light positioning, welding position is more accurate.
9. Laser welding has less gas and dust and is more environmentally friendly.
Do you have headaches because of the following problems?
1.Need to weld metal but suffer from surface rust ,paint and oil dirt 2.Chemical cleaning damage to raw materials, manual grinding can't clean well
3.Independent laser cleaning machines are expensive and less used....
Same price as laser welding machine we have brand new Smart HWE!
HGTECH Handheld Fiber Laser Welding Machine, also called Portable Fiber Laser Welding Machine, Handheld Fiber Laser Welder, Manual Fiber Laser Welding Machine, is a new type high-power, high-end continuous welding tool that couples a high-energy laser beam into an optical fiber, collimates it into parallel light through a collimating lens after long-distance transmission, and then focuses on the workpiece for welding.
The handheld laser welding machines for metals, equipped either with an independently developed wobble welding head or a common welding head, greatly improving the joint strength and quality of welding and obtaining better weld formability. All products realize spot welding, straight seam welding, overlap welding, circumferential welding, and welding of any track. And you can also add welding wire. Compared with traditional argon arc welding, the efficiency is increased by more than 50%.
Our Advantages
1.Fast switching :One machine with multiple functions
2.For workshop:One machine can do all the work, saving space and cost
3.For large production factory:Modify the capacity allocation at any time, and there are no more idle machines
4.Laser welding is simple in operation, low in consumption and long in service life.
5.Safer and more environmentally friendly
Detailed Photos

Product Parameters

MODEL NUMBER	SMART - HWE
Conduction type	fiber laser
Wavelength	1080mm
Power	1.5KW/2KW/3kw
Frequency	20-5000KHz
Scanning range	Line 0-50mm
Output focal length	120mm
Cooling method	Water cooling
Fiber length	10M
Port	1 way gas
Power consumption	≤6KW
Air pressure requirement	4-6Bar (Select nitrogen,argon according to process requirements.)
Electricity demand	1.5KW-AC220V/50/60Hz 2KW/3KW-AC380V/50/60Hz

Sample

Material	Output power (W)	Maximum penetration (mm)
Stainless steel	1000	0.5-3
Stainless steel	1500	0.5-4
Stainless steel	2000	0.5-5
Carbon steel	1000	0.5-2.5
Carbon steel	1500	0.5-3.5
Carbon steel	2000	0.5-4.5
Aluminum alloy	1000	0.5-2.5
Aluminum alloy	1500	0.5-3
Aluminum alloy	2000	0.5-4
Galvanized sheet	1000	0.5-1.2
Galvanized sheet	1500	0.5-1.8
Galvanized sheet	2000	0.5-2.5

After-sale Service 1. Warranty period: From the acceptance qualified date, the warranty period will be 1 (one) year, but in any case, not more than 13 months after B/L date. Seller is responsible to offer free fittings in these years (except consumable part.) Buyer has to send the damaged fitting to sellers. After the warranty, we will also provide favorable service of long term technical supports and spares supply to ensure machine's stable and continuous running.
2. The artificial damage in the warranty period and damage after warranty period, Seller offers paid service.
3. The Seller will give 24 hours service support during warranty time, and giving technical guide by email, telephone, Fax for daily maintenance, if need local support, Buyer has to pay for the travel and
accommodation & meal cost for the people from seller's side, no labor charge require. If products are out of warranty and require on site service, Buyer have to pay for the travel and accommodation & meal cost for the people from seller's side, labor charge is require, USD200/day per people.
4. About the transportation expanses of spare parts will be supported by both parties in the warranty period, like Buyer support the cost of transportation for damage spare part back to supplier; Seller support the new spare part deliver to Buyer.
Company Profile
About Us
HGTECH was founded in 1999, and went public in Shenzhen Stock Exchange in 2000. It was the first laser-based hi-tech company to go public in China, and also the leading company in laser industry and one of the top 100 electronic information companies domestically.

ABOUT TECH
HGTECH is the pioneer and leader of laser industrial application in china. It is the world's leading provider both of laser equipment and intelligent manufacturing solutions.
With the deep understanding of the manufacturing industry trend, HGTECH constantly enrich products and solutions, adhere to exploring the integration of automation, informatization, intelligence and manufacturing industry, and provide various industries with laser cutting system, laser welding system, laser marking series, complete sets of equipment for laser texturing, laser heat treatment system, laser drilling machine, Laser and various supporting devices, special laser processing equipment and plasma cutting equipment, as well as the overall construction scheme of automatic production line and smart factory.
Exihibition
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HGTECH
