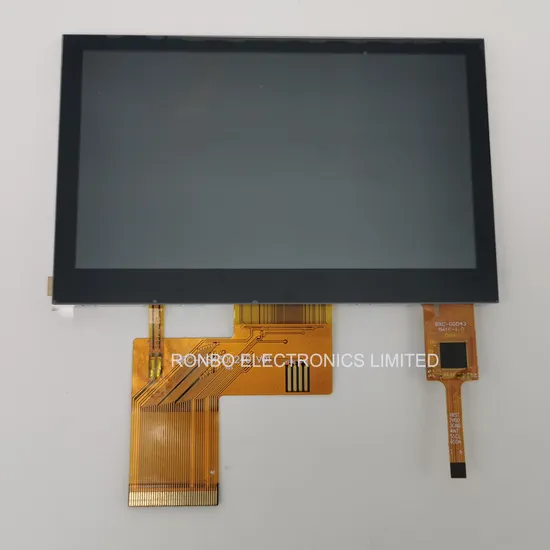

4.3′′ 4.3 Inch IPS 480X272 Resolution Capacitive TFT Color LCD Touch Screen

Product Description

4.3'' 4.3 Inch IPS 480x272 Resolution Capacitive TFT Color LCD Touch Screen
Product Specification:
CTP structure explanation:
* P+G=PET+Glass (cover lens is PET and touch sensor is glass).
* G+G=Glass+Glass (cover lens is glass and touch sensor is glass).
* G+F/F=Glass+Film+Film (cover lens is glass and touch sensor is film+film).
* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area.
LCD and CTP Specification:
* It is a TFT LCD Display bonding with Capacitive Touch Screen.
* Backlight with different brightness is customized according to your request.
* It is Standard TFT LCD Module and Capacitive Touch Screen.
* It can be customized for LCD and Touch screen.
* Experienced Team for Your Custom Solution.
* RoHS compliant.

Main Specification	Model NO.:	RB043D40N03A-IPS-GG61C
	Screen Size:	4.3"
	Display type	IPS
	Resolution:	480*272
	Viewing direction:	12 o'clock
	Module size(W*H*T):	105.5*67.2*5.0mm
	Active area (W*H):	34.85*43.56mm
	Brightness:	400cd/m²
	Operating Temperature:	-20 ~ +70ºC
	Storage Temperature:	-30 ~ +80ºC
LCD Specification	Controller:	ST7283
	Backlight:	7S1P=8 WLED If=20mA, Vf =22.4V
	Contrast	500
	Interface:	RGB
	Pin NO:	40Pin
	Pin pitch	0.5mm
	Connecting type	FPC Connector
CTP Specification	Touch type	Multi-touch capacitive touch panel
	Structure:	G+G
	Surface Treatment:	Customized
	Sensor/CG Thickness:	1.1/0.55mm
	Total Thickness:	2.0mm (don't including Double Tape)
	Controller:	GT911
	Touch Action Force:	30~60g
	Operating Voltage::	2.8V~3.3V
	Transmittance:	≥86%
	Surface Hardness:	≥6H
	Interface:	IIC
	Pin NO:	6Pin
	Pin pitch	0.5mm
	Connecting type	FPC Connector
	Operating system support:	Linux, Android, Windows

Custom Projected Capacitive Touch Screen:
Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module. we are also capable of doing the customized shape needed to suit for customer's mechanical design. With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

	Lens's Features > Shape: Irregular and hole > Color: Silk printing, Logo > Glass brand: AGC, Corning, CSG, ETC > Treatments: AG, AR, AF, Anti-explosion > Thickness: 0.55mm, 0.7mm,1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm
	Sensor Features > Sensor material: Glass, Film,Film + Film > Thickness:0.125mm,0.4mm, 0.55mm, 0.7mm, 1.1mm > FPC: Shape design optional > IC: Focaltech, Goodix, Cypress, EETI > Interface: IIC, USB, RS232, SPI
	Assembly > Optical Bonding with OCA > Double faced adhesive tape

Product Application:

Telecommunication Devices	Telephone, Interphone, Smart Watch, Tablet PC, PDA
Consumer Products	Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC
Technical Equipment	Elevator Controller, Industrial Machine, Security Monitor, POS
Office Automation	Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor
Home Appliances	Air-condition Display, Refrigerator, Video Doorbell, Smart Machine
Automobile Display	GPS, Protable Navigation, Video Player, Speedometer, Recorder
IT Products	Digital Video, Media Player, Advertising Machine
Medical Equipment	Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare

Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Company:
Ronbo Electronics Ltd., is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT and IPS modules for a variety of industrial and consumable application. We are one of the leading display providers of character LCD modules, graphic LCD modules, TFT & IPS modules and Touch Screen. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Moreover, our company has passed ISO 9001 certifications as well as RoHS.
By adopting computerized management system, automatic manufacturing process and advanced technology, we can able to continuously supporting our worldwide customers with qualified and reliable products.

Our Advantage:

Rich experience	Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced Equipment	Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality
Quality Assurance	Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast response	Quickly realize your customized ideas, and have a sample ready in short time
Low MOQ	Depends on product
Stable supply	1~10 years supply period
Extensive range	Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacity	Operation capacity 2KK monthly
Quality guarantee	RoHS compliant
Management	ISO 9001:2008, ISO 14001:2004

Product Line:
☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf
☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
☆ COG production lines: 4 .
☆ Backlight production lines: 2 .
☆ Existing machine capacity will be 1KK per month.
Quality Policy:
All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Certification:
FAQ:
Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment0*480 CapacitouScreenCDsplay
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
