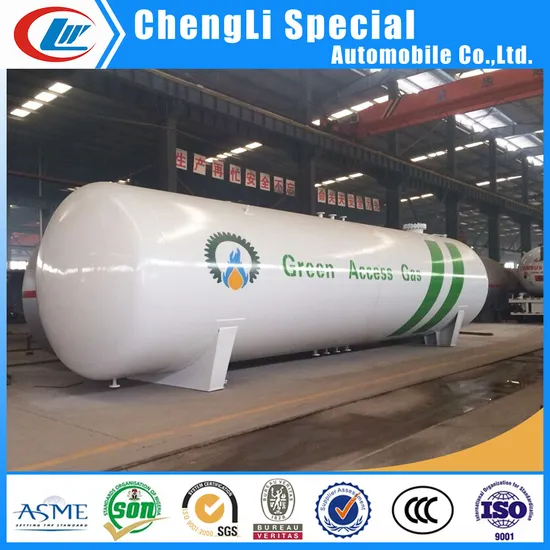

ASME 50000 Litres LPG Gas Storage Tank 25mt for Sale

Product Description

ASME 50000 Litres LPG Gas Storage Tank 25mt for Sale
1)lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2) lpg storage tank material
Q345R Q370R SA516
3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Technique Parameter for 50,000l lpg storage tank

Item No.	Parameters
Volume of Tank (cbm)	50
Tare Weight (kg)	10640 kg
Filling Capacity (kg)	19950 kg
Thickness of Shell (mm)	14
Thickness of Endplate (mm)	16
tank cylinder diameter (mm)	2700
External Dimensions (mm) (length×width×height)	9182*2728*3318
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas
Design Pressure	1.77MPa ( 256.65 Psi)
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm

accessory list for 50,000l lpg tank

Accessories List
Parts No	Size	Parts Name	Model No.	Quantity	Unit
a	DN50	Cut-off Valve for Drain Outlet	J41N-2.5-50	1	set
b	DN50	Cut-off Valve for Liquid Phase Outlet	J41N-2.5-50	1	set
c1	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
c2	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
d	DN50	Cut-off Valve for Liquid Inlet	J41N-2.5-50	1	set
i	DN50	Cut-off Valve for Air Drain Outlet	J41N-2.5-50	1	set
h	DN80	Cut-off Valve for Safety Valve	J41N-2.5-80	1	set
f1	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
f2	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
e	M33*2	Thermometer	WTQ-280	1	set
g	M20*1.5	Pressure Gauge	Y-100T	1	set
/	/	Magnetic Level Gauge	HG21584-95	1	set
/	DN80	Safety Valve	A42F-25	1	set
	M20×1.5	Needle Valve	J24W-320-DN6	1	set
Total Quantity				14	set

different kind lpg storage tank by CLW group
1) lpg storage tank ( target market Nigeria, Ghana, Niger, Tanzania, Zambia, Kenya, Uganda, Zimbabwe, Botswana, Somalia, Malawi, Mongolia, Thailand, Vietnam, Bangladesh)
2) lpg tank truck
3) lpg tank semi trailer ( tank capacity 40,000l 45,000l 49,000l 50,000l 54,000l 56,000l 59,000l 60,000l)
4) lpg tank container (20ft 30ft 40ft)
5) lpg tank bobtail ( filling accessories: lpg filling gun, lpg filling pump, flow meter)
6) lpg tank skid filling station ( lpg filling scale, lpg dispenser, lpg pump and motor, lpg compressor, flow meter, level gauge, safety valve, cut off valve, bottom base...)

About our company
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these cities, there is a Golden Car Manufacturing hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.
Since being founded in 1998, ChengLi has continually worked to improve its production processes and production tools. Qualified personnel ensure the highest standards of quality control in the manufacture of the principal components and the final assembly. Covering an area of 8 hectares more than 5000 vehicles are produced each year. Our company has independent export right, the product had delivery to many countries around the word. Take 2008 for example, the amount of export reach 2000 units. The registered Labels CLW is well known in these years.
Based on high quality and advanced technology, the leading varieties include more than 200 types of trucks such as water truck, garbage truck, fecal and sewage suction truck,refuse compactor, fuel tank, aerial platform, truck with crane, dump truck, van truck, trailers, fire-fighting truck, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, LPG tank, etc. All products have passed the ISO9001-2000 and t 3C(China Compulsory Certification) standard.
